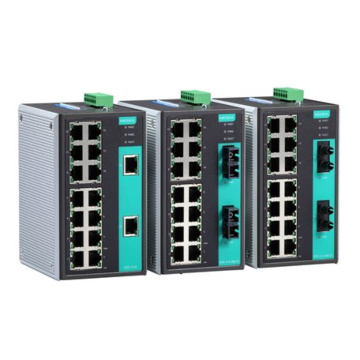

EDS-316
SKU
EDS-316
Lead time 14-22 days
16-port unmanaged Ethernet switches
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C wide operating temperature range (-T models)
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-316 models: 16 EDS-316-MM-SC/MM-ST/MS-SC/SS-SC models: 14 EDS-316-SS-SC-80 models: 14 EDS-316-M-SC/M-ST/S-SC models: 15 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-316-M-SC models: 1 EDS-316-MM-SC models: 2 EDS-316-MS-SC models: 1 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-316-M-ST models: 1 EDS-316-MM-ST models: 2 |
| 100BaseFX Ports (single-mode SC connector) | EDS-316-MS-SC models: 1 EDS-316-S-SC models: 1 EDS-316-SS-SC models: 2 |
| 100BaseFX Ports (single-mode SC connector, 80 km) | EDS-316-SS-SC-80 models: 2 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 4K |
| Packet Buffer Size | 1.25Mbits |
| Max. No. Of VLANs | |
| Power Parameters | |
| Connection | 1 removable 6-contact terminal block |
| Input Current | Non-fiber models: 0.34 A @ 24 VDC Fiber models: 0.4 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC Redundant dual inputs |
| Physical | |
| Dimensions | 80.1 x 135 x 105 mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | None |
| PoE Option | None |
| Manufacturer / Brand | Moxa |
