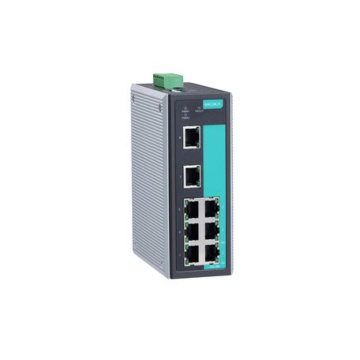

EDS-308

SKU

EDS-308

Lead time 14-22 days

8-port unmanaged Ethernet switches

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)	EDS-308/308-T: 8 EDS-308-M-SC/308-M-SC-T/308-S-SC/308-S-SC-T/308-S-SC-80: 7 EDS-308-MM-SC/308-MM-SC-T/308-MM-ST/308-MM-ST-T/308-SS-SC/308-SS-SC-T/308-SS-SC-80: 6 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)	EDS-308-M-SC: 1 EDS-308-M-SC-T: 1 EDS-308-MM-SC: 2 EDS-308-MM-SC-T: 2
100BaseFX Ports (multi-mode ST connector)	EDS-308-MM-ST: 2 EDS-308-MM-ST-T: 2
100BaseFX Ports (single-mode SC connector)	EDS-308-S-SC: 1 EDS-308-S-SC-T: 1 EDS-308-SS-SC: 2 EDS-308-SS-SC-T: 2
100BaseFX Ports (single-mode SC connector, 80 km)	EDS-308-S-SC-80: 1 EDS-308-SS-SC-80: 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Switch Properties
Processing Type	Store and Forward
MAC Table Size	2K
Packet Buffer Size	768 K
Max. No. Of VLANs
Power Parameters
Connection	1 removable 6-contact terminal block
Input Current	EDS-308/308-T: 0.07 A @ 24 VDC EDS-308-M-SC/S-SC Series, 308-S-SC-80: 0.12 A @ 24 VDC EDS-308-MM-SC/MM-ST/SS-SC Series, 308-SS-SC-80: 0.15 A @ 24 VDC
Input Voltage	12/24/48 VDC Redundant dual inputs
Physical
Dimensions	53.6 x 135 x 105 mm
Installation	Din-rail mounting Wall mounting
Housing	Metal
