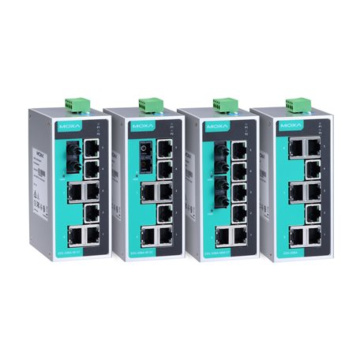

EDS-208A
SKU
EDS-208A
Lead time 14-22 days
8-port compact unmanaged Ethernet switches
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4/e-Mark), and maritime environments (DNV/GL/LR/ABS/NK)
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-208A/208A-T: 8 EDS-208A-M-SC/M-ST/S-SC Series: 7 EDS-208A-MM-SC/MM-ST/SS-SC Series: 6 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-208A-M-SC Series: 1 EDS-208A-MM-SC Series: 2 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-208A-M-ST Series: 1 EDS-208A-MM-ST Series: 2 |
| 100BaseFX Ports (single-mode SC connector) | EDS-208A-S-SC Series: 1 EDS-208A-SS-SC Series: 2 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 2K |
| Packet Buffer Size | 768 kbits |
| Max. No. Of VLANs | |
| Power Parameters | |
| Connection | 1 removable 4-contact terminal block |
| Input Current | EDS-208A/208A-T, EDS-208A-M-SC/M-ST/S-SC Series: 0.11
A @ 24 VDC EDS-208A-MM-SC/MM-ST/SS-SC Series: 0.15 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC |
| Physical | |
| Dimensions | 50 x 114 x 70 mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | None |
| PoE Option | None |
| Manufacturer / Brand | Moxa |
