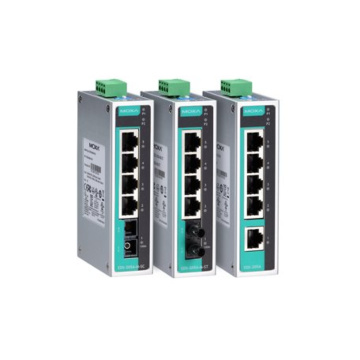

EDS-205A
SKU
EDS-205A
Lead time 14-22 days
5-port compact unmanaged Ethernet switches
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/GL/LR/ABS/NK)
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-205A/205A-T: 5 EDS-205A-M-SC/M-ST/S-SC Series: 4 All models support: Auto negotiation speed Full/half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-205A-M-SC Series: 1 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-205A-M-ST Series: 1 |
| 100BaseFX Ports (single-mode SC connector) | EDS-205A-S-SC Series: 1 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 1K |
| Packet Buffer Size | 384 kbits |
| Max. No. Of VLANs | |
| Power Parameters | |
| Connection | 1 removable 4-contact terminal block |
| Input Current | EDS-205A/205A-T: 0.09 A @ 24 VDC EDS-205A-M-SC/M-ST/S-SC Series: 0.1 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC |
| Physical | |
| Dimensions | 30 x 115 x 70 mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | None |
| PoE Option | None |
| Manufacturer / Brand | Moxa |
