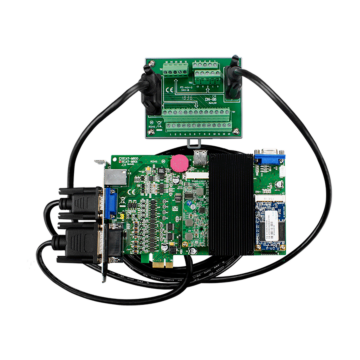

ECAT-M801-16AX/S
SKU
ECAT-M801-16AX/S
Lead time 21-30 days
EtherCAT Master, Max. 16-Axis Synchronously, 13-channel Digital I/O, 2-Axis Encoder
| Hardware | |
| Connector | RJ45 x1 DB-26 (Female) DB-15 (Female) |
| Encoder Input | |
| Type | Quadrant, CW/CCW, Pulse/Dir. |
| Response Speed | 1 MHz |
| Resolution | 32-bit |
| No. of Axes | 2 |
| Compare Trigger Output | 2-ch |
| Digital Input | |
| Channels | 13 |
| Type | Sink/Source |
| Wet Contact, ON Voltage | +19 V ~ + 24 V |
| Wet Contact, OFF Voltage | +11 V Max. |
| Isolation | 3000 VDC |
| Digital Output | |
| Channels | 13 |
| Type | Sink (open collector) |
| Load Voltage | 24v |
| Max. Load Current | 100 mA/ch |
| Isolation | 3000 Vrms |
| COM Ports | |
| Protocol | EtherCAT |
| PC Bus | |
| Type | PCI Express x1 |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Axes | Max. 16 |
| No. of Nodes | Max. 64 |
| Data Transfer Medium | Ethernet Cable (Min. CAT 5e), Shielded |
| Mechanical | |
| Dimensions (mm) | 135 x 192 x 21.5 (W x L x D) |
| Environmental | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 0 ~ 90% RH, Non-condensing |
