eBOX800-900-FL
SKU
eBOX800-900-FL
Lead time 21-30 days

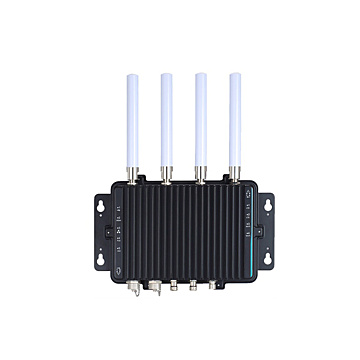

Rugged IP67-rated fanless edge system with NVIDIA® JETSON TX2,1 HDMI, 1 GbE LAN, 1 Gigabit PoE, 1 USB 2.0 and 100 to 240 VAC power input
Details
* IP67-rating for outdoor use
* NVIDIA® JETSON TX2 with Pascal, 256 CUDA cores GPU
* High AI computing performance for GPU-accelerated processing
* -30°C to +60°C operating temperature range
* 100 to 240 VAC wide range power input with 10kV surge protection
* 4 N-jack antenna openings with water proof design
* Features M12 lockable I/Os
* 1 IEEE 802.3at GbE LAN port (30W)
* Rich I/O options for customized designs and mission-critical projects
* NVIDIA® JETSON TX2 with Pascal, 256 CUDA cores GPU
* High AI computing performance for GPU-accelerated processing
* -30°C to +60°C operating temperature range
* 100 to 240 VAC wide range power input with 10kV surge protection
* 4 N-jack antenna openings with water proof design
* Features M12 lockable I/Os
* 1 IEEE 802.3at GbE LAN port (30W)
* Rich I/O options for customized designs and mission-critical projects
Package includes
eBOX800-900-FL
* NVIDIA® JETSON TX2
* 8GB RAM
* NVIDIA® JETSON TX2
* 8GB RAM
Specifications
System | |
Processor | CPU Board: NVIDIA® JETSON TX2 CPU: HMP dual denver 2/2 MB L2 + quad ARM® A57/2 MB L2 GPU: NVIDIA® Pascal, 256 CUDA cores |
CPU Performance | |
Chipset | SoC integrated |
Storage | 1 x M.2 2280 KEY M with PCIe 2.0 x4 for NVMe SSD (optional) Onboard 32GB eMMC (via JETSON TX2) |
Storage Support | |
Memory | 8GB 128-bit LPDDR4 onboard |
Memory (RAM) | |
I/O Ports | |
USB 2.0 | 1 x C3 USB 2.0 |
USB 3.0 | |
Serial | |
Video | 1 x C3 HDMI with FHD supported |
Ethernet | 1 x 10/100/1000 Mbps Ethernet (M12 X-Code) 1 x Gigabit PoE (IEEE 802.3at, 30W) (M12 X-Code) |
Other Ports | 4 x N-jack antenna opening with water proof design |
Operating System | |
Operating System | Linux Ubuntu |
Power | |
DC Input / Source Voltage | 100 to 240 VAC with 10kV SPD |
Power Management | |
Expansion Slots | |
Expansion | |
Multimedia | |
Integrated Speakers | |
Operating Temperature | |
Operating Temperature | -30°C to +60°C |
Humidity Range | 10% to 95% non-condensing |
Cooling System / Thermal Solution | |
Thermal Solution | Passive - Fanless |
Dimensions / Weight | |
Weight (kg) | 4.3 kg |
Dimensions | 210 x 366.83 x 83 mm |
Enclosure | |
Bezel | |
Material | Aluminum |
Mounting | Wall-mount, VESA |
Note * | |
Peripherals & Devices | |
Accessories | |
Extra Features | |
Certification | |
Certification | CE / FCC |
