eBOX710-521-FL
SKU
eBOX710-521-FL
Lead time 21-30 days
0.00EUR

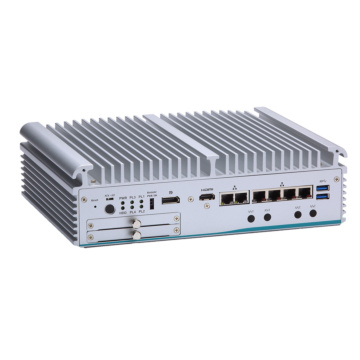

Fanless Embedded System with LGA1151 Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® C246, ECC/Non-ECC and 1 PCIex4 Expansion Slot
- Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor
- 2 DDR4 ECC/non-ECC memory supported, up to 64GB
- Dual swappable 2.5" SATA HDD drive bays with RAID 0 &1
- DVI-I, HDMI, and DisplayPort with triple-view supported
- 6 GbE LAN, 6 USB 3.1 and 1 PCIe x4 slot
- Flexible I/O window supported
| System | |
| Processor | LGA1151 Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel C246 |
| Storage | 2 x 2.5" HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting) |
| Storage Support | |
| Memory | 2 x 260-pin DDR4-2666 non-ECC SO-DIMM, up to 64GB |
| Audio | |
| Graphics | |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4 x USB 3.2 Gen2 2 x USB 3.2 Gen1 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x HDMI 1 x DisplayPort 1 x DVI-I |
| Ethernet | 6 x 10/100/1000 Mbps Ethernet (5 x i210-IT & i219-LM) |
| Other Ports | 4x Antenna opening |
| Expansion | |
| Expansion Interface | 2 x Full-size PCI Express Mini Card slot (USB + PCIe
signal) 1 x PCIe x4 slot 2 x SIM slot |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 24VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis) |
| Shock | IEC 60068-2-27 (w/ SSD: 50G@wall mount, half-sine, 11 ms duration) |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 4.8 kg |
| Dimensions | 280 x 210 x 80,5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting /DIN-rail |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|---|
| CPU Family | Coffee Lake (8th Gen Core i3/i5/i7) |
