eBOX671A-CML-GbE

Customize eBOX671A-CML-GbE

* Required Fields

Your Customization
eBOX671A-CML-GbE
eBOX671A-CML-GbE

0.00EUR

Summary
    SKU
    eBOX671A-CML-GbE
    Lead time 21-30 days

    0.00EUR

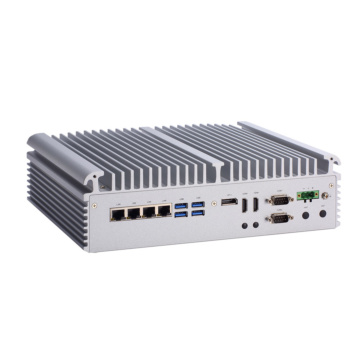

    Fanless Embedded System with LGA1200 Socket 10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® W480E, HDMI, DisplayPort, 6 USB, 4 LAN, and 9 to 48 VDC

    • LGA1200 10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® with Intel® W480E chipset (Comet Lake-S)
    • Dual 2.5" SATA HDD drive bays with RAID 0 &1
    • 2 HDMI and DisplayPort for triple view
    • TPM 2.0 onboard
    • AXView intelligent remote monitoring software for IIoT
    System
    Processor LGA1200 socket 10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
    CPU Performance
    Security Hardware
    Chipset Intel® W480E
    Storage 2 x 2.5” SATA HDD/SSD (up to 9.5 mm height)
    2 x mSATA (enabled in jumper setting)
    Storage Support
    Memory 2 x 260 pin DDR4 SO-DIMM, up to 64GB
    Graphics Integrated Intel® HD Graphics
    I/O Ports
    USB 2.0 -
    USB 3.0 5x USB 3.2 Gen2
    1x USB 3.2 Gen1
    Serial 2 x RS-232
    2 x RS-232/422/485
    Video 2 x HDMI 1.4b (lockable)
    1 x DisplayPort 1.2 ++
    Ethernet 4 x 10/100/1000 Mbps Ethernet (3 x i210IT,1 x i219LM)
    Other Ports TPM 2.0
    1 x Flexible I/O window
    5 x Antenna opening
    1 x Power button
    1 x AT/ATX quick switch
    1 x Remote switch
    1 x Reset button
    Expansion
    Expansion Interface 2 x Full-size PCI Express Mini Card slot (USB + PCIe + SATA signal)
    2 x SIM slot
    1 x M.2 Key B 3050 (for 5G)
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature
    -40°C to 70°C (40°F to 158°F W.T. DRAM & SSD, CPU TDP 35W)
    -40°C to 60°C (40°F to 140°F W.T. DRAM & SSD, CPU TDP 65W)
    Humidity Range 10% ~ 90%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 4.9 kg
    Dimensions 280 x 210 x 80.5 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting kit / DIN-rail kit
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC Class A
    More Information
    CoolingFanless
    CPU FamilyComet Lake (10th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -40..60C
