eBOX640A-ALD-S

Customize eBOX640A-ALD-S
eBOX640A

* Required Fields

Your Customization
eBOX640A-ALD-S
eBOX640A-ALD-S

0.00EUR

Summary
    SKU
    eBOX640A-ALD-S
    Lead time 21-30 days

    0.00EUR

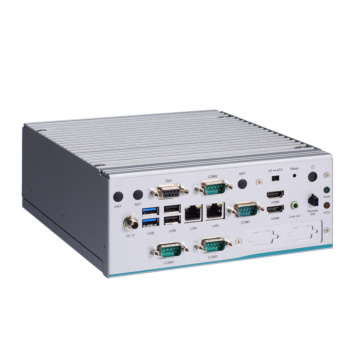

    Fanless Embedded System with LGA1700 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor, Intel® H610, 4 COM, 2 LANs, 2 HDMI, 4 USB, 8-CH DIO and 19VDC

    • LGA1700 12th gen Intel® Core™ i7/i5/i3, 35W TDP
    • Intel® UHD Graphics 770 by Intel® Xe Architecture with up to 32 graphics
    • 8-CH DIO
    • 2 HDMI for dual display outputs
    • -10˚C to +50˚C wide operating temperatures
    • 19VDC power input w/power protection
    • Cost-effective design
    System
    Processor LGA1700 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (TDP up to 35W)
    Security Hardware TPM2.0
    Chipset Intel H610
    Storage 1 x 2.5" SATA HDD drive bay (up to 15 mm height)
    Memory 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
    Audio 1 x Audio (Line-out)
    Graphics 2 x HDMI 2.0
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.0 2x USB 3.2 Gen 1
    Serial 1 x RS-232/422/485
    3 x RS-232
    Video 2 x HDMI 2.0
    Ethernet 1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V)
    1 x 1000/100/10 Mbps Ethernet (Intel® I219-V)
    Other Ports 1 x Audio (Line-out)
    1 x 8-CH DIO (4-in/4-out)
    Expansion
    Expansion Interface 1 x M.2 Key B 2242 (PCIe x2 signal , for storage only)
    1 x M.2 Key E 2230 (PCIe x1 & USB 2.0 signal)
    1 x Full-size PCI Express Mini Card slot (PCIe x1 & USB 2.0 signal)
    Operating System
    Operating System Windows® 10, Windows 11, LINUX
    Power
    DC Input / Source Voltage 19VDC
    Operating Temperature
    Operating Temperature -10°C ~ +50°C
    Humidity Range 10% ~ 90%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 3 kg
    Dimensions 195 x 210.6 x 80 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting /DIN-Rail
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    More Information
    CoolingFanless
    CPU FamilyAlder Lake (12th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -10..50C
