eBOX640-521-FL

Customize eBOX640-521-FL
eBOX640-521-FL

* Required Fields

Your Customization
eBOX640-521-FL
eBOX640-521-FL

0.00EUR

Summary
    SKU
    eBOX640-521-FL
    Lead time 21-30 days

    0.00EUR

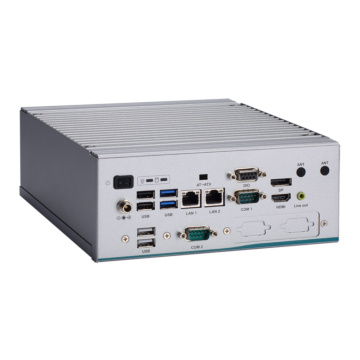

    Fanless Embedded System with LGA1151 Socket 8th Gen Intel® Core™ & Celeron® Processor, Intel® H310, HDMI, DisplayPort, 6 USB, 2 COM and 8-CH DI/DO

    • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Coffee Lake)
    • Supports 2 COM, 6 USB, and 8-CH DI/DO
    • Two 2.5" SATA drive bay
    • M.2 Key E 2230 for Wi-Fi
    • Front I/O connectivity design
    • Supports flexible I/O window
    System
    Processor 8th gen Intel® Core™ i7/i5/i3 processor
    CPU Performance Intel® Core™ i7-8700T Hexa Core processor 2.4GHz 12MB Cache, TDP 35W
    Intel® Core™ i5-8500T Hexa Core processor 2.4GHz 12MB Cache, TDP 35W
    Intel® Core™ i3-8100T Hexa Core processor 2.1GHz 9MB Cache, TDP 35W
    Security Hardware
    Chipset Intel H310
    Storage 2 x 2.5” SATA HDD drive bay (max. up 9.5 mm height)
    Storage Support
    Memory 2 x DDR4-2400 SO-DIMM, up to 32GB
    Audio
    Graphics
    I/O Ports
    USB 2.0 4x USB2.0
    USB 3.0 2x USB 3.0
    Serial 1 x RS-232/422/485
    1x RS-232
    Video 1 x DisplayPort
    1 x HDMI
    Ethernet 2 x 10/100/1000Mbps (Intel® i219V-LM, i211-AT)
    Other Ports Line-out
    1 x 8-CH DIO (4-in/4-out)
    4x Antenna opening
    Expansion
    Expansion Interface 1 x Full-size PCI-Express Mini Card slot (PCIe + SATA + USB)
    1 x M.2 Key E 2230 (for Wi-Fi)
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 12VDC
    230V AC-DC adapter
    Operating Temperature
    Operating Temperature -10°C ~ +50°C , With Wide-Temp SSD
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 3.0 kg
    Dimensions 195 x 210 x 80 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    DIN-rail kit
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    More Information
    CoolingFanless
    CPU FamilyCoffee Lake (8th Gen Core i3/i5/i7)
