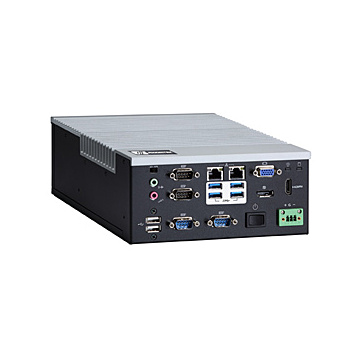

eBOX640-500-FL

Details

* LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor
* Fanless operation with compact size design
* 4 COM, 6 USB and 2 GbE LANs
* Two 2.5" SATA drive bay, 1 PCIe Mini Card and 1 SIM slot
* Front panel I/O connectivity design
* 10~30 VDC wide range power input

Specifications

System
Processor	7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® processor
CPU Performance
Security Hardware
Chipset	Intel H110
Storage	2 x 2.5" SATA HDD drive bay 1 x mSATA
Storage Support
Memory	2 x 288-pin DIMM DDR4-2133, up to 32GB
Graphics	1 x HDMI , 1 x DisplayPort, 1 x VGA
I/O Ports
USB 2.0	2 x USB 2.0
USB 3.0	4 x USB 3.0
Serial	1 x RS-232/422/485 3 x RS-232
Video	1 x DisplayPort 1 x HDMI 1 x VGA
Ethernet	2 x 10/100/1000Mbps (Intel® i219LM & i211AT)
Other Ports	1 x Audio (Mic-in/Line-out)
Expansion
Expansion Interface	1x full-size PCI Express Mini Card slot with mSATA supported (PCI Express + USB signal) 1 x SIM slot
Operating System
Operating System	Win 7 / Win10
Power
DC Input / Source Voltage	Input: DC 10~30VDC Optional AC 230 Adapter
Operating Temperature
Operating Temperature	Operating Temperature -20°C to 55°C , with Wide-temp SSD
Humidity Range	10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	3.0 kg
Dimensions	182 x 230 x 82 mm
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Desk/DIN/Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE
