EBOX630A
SKU
EBOX630A-xxx
Lead time 21-30 days
0.00EUR

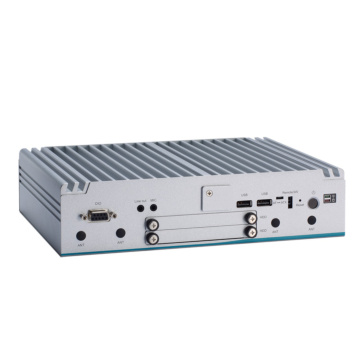

Fanless Embedded System with 11th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, 2 HDMI, 1 DisplayPort, 3 LANs, 6 USB, 4 COM, and 9 to 48 VDC
- 11th gen Intel® Core™ i7/i5/i3 or Celeron® Quad-core ULT processor (Tiger Lake UP3)
- Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
- Supports 3x 2.5 GbE, 6 USB, 4 COM
- -40°C to +60°C wide operating temperatures
- 9 to 48 VDC wide range DC power input
- Supports triple displays with 2 HDMI, and 1 DisplayPort++
- Intel® Iris® Xe integrated graphics (i7 & i5 SKUs)
- Trusted platform module (TPM 2.0 onboard)
| System | |
| Processor | 11th gen Intel® Core™ i7/i5/i3 & Celeron® processor |
| CPU Performance | Intel® Core™ i7-1185G7E Intel® Core™ i5-1145G7E Intel® Core™ i3-1115G4E Intel® Celeron® 6305E (TDP up to 15W) |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 2 x 2.5” swappable SSD/HDD drive bay RAID 0,1 supported 1 x M.2 Key M 2280 (PCIe x 4 only) |
| Memory | 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB |
| Audio | |
| Graphics | 2 x HDMI 1.4b 1 x DisplayPort++ 1.4a |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 4x USB 3.2 Gen1 |
| Serial | 2 x RS-232/422/485 2 x RS-232 |
| Video | 2 x HDMI 1.4b 1 x DisplayPort++ 1.4a |
| Ethernet | 2 x 10/100/2500 Mbps Ethernet (Intel® i226-IT) 1 x 10/100/2500 Mbps Ethernet (Intel® i226-LM) |
| Other Ports | 1 x 8-CH TTL DIO via DB9 female (4-in/4-out) |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card (USB + PCIe
signal) 1 x M.2 Key E 2230 (for WiFi) 1 x Front-access SIM slot |
| Operating System | |
| Operating System | Win 10 IoT, Win 11 IoT, Linux |
| Power | |
| DC Input / Source Voltage | 9 to 48V DC |
| Operating Temperature | |
| Operating Temperature | -40°C to +60°C with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Vibration & Shock | |
| Vibration | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |
| Shock | IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |
| Dimensions / Weight | |
| Weight (kg) | 2.4 kg |
| Dimensions | 250 x 170 x 60 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting / DIN-RAIL |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|---|
| CPU Family | Tiger Lake (11th Gen Core i3/i5/7) Mobile |
| Operating Temp | Wide Temp -40..60C |
