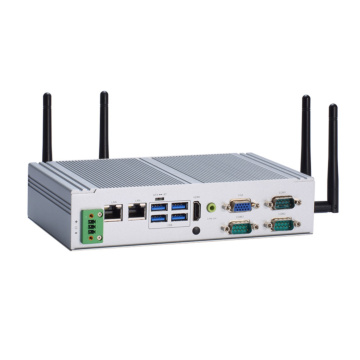

    Fanless Embedded System with Intel® Celeron J6412 2.0 GHz, HDMI, VGA, 6 USB, 2 LAN, 3 COM, and 9 to 36 VDC

    • Intel® Celeron® Processor J6412 quad-core onboard
    • -10 °C to +60 °C operating temperature
    • 1 HDMI and 1 VGA for dual-view display
    • Trusted Platform Module (TPM) 2.0 onboard
    • M.2 Key E for WiFi/WiFi 6 connection
    • 9-36 VDC Wide range power input
    System
    Processor Intel® Celeron® processor J6412, up to 10W
    CPU Performance
    Security Hardware TPM2.0
    Chipset SoC
    Storage 1 x 2.5" SATA HDD drive bay (up to 9.5 mm height)
    1 x mSATA (enabled in BIOS setting)
    Memory 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
    Audio
    Graphics 1 x HDMI 1.4b (lockable)
    1 x VGA
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.0 4x USB 3.2 Gen1
    Serial 1 x RS-232/422/485
    2 x RS-232
    Video 2 x HDMI 1.4b
    1 x DisplayPort++ 1.4a
    Ethernet 1 x 10/100/1000/2500 Mbps Ethernet (Intel® i226-LM)
    1 x 10/100/1000 Mbps Ethernet (Intel® i210-AT)
    Other Ports 1 x Audio (Line-out)
    TPM 2.0
    1 x ATX power switch
    1 x ATX/AT quick switch
    1 x Remote power switch
    4 x Antenna opening
    Expansion
    Expansion Interface 1 x Full size internal PCI Express Mini Card slot (mSATA/SIM) (USB + PCIe + SATA)
    1 x M.2 2230 Key E (PCIe + USB)
    Operating System
    Operating System Win 10 IoT, Win 11 IoT, Linux
    Power
    DC Input / Source Voltage 9 to 36V DC
    Operating Temperature
    Operating Temperature -10°C to +60°C with 0.5 m/s air flow
    (with W.T. DRAM & SSD,CPU TDP 10W)
    Humidity Range 10% ~ 95%, non-condensing
    Vibration & Shock
    Vibration IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
    Shock IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
    Dimensions / Weight
    Weight (kg) 1.2 kg
    Dimensions 200 x 120 x 46 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting / DIN-RAIL
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    More Information
    CoolingFanless
    CPU FamilyAlder Lake (12th Gen Atom X/Intel N)
    Operating TempWide Temp -10..50C
