eBOX570

Qty

0.00EUR

Summary

SKU

eBOX570-x

Lead time 14-22 days

0.00EUR

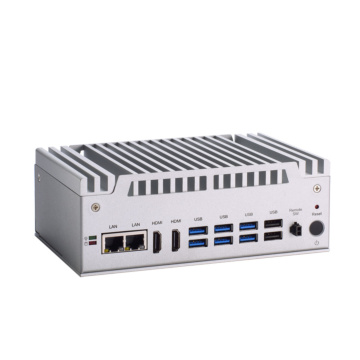

Fanless Embedded System with 13th Gen Intel® Core™ i7/i5/Celeron® Processor, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC

System
Processor	Intel® Core™ i7-1365UE Intel® Core™ i5-1335UE Intel®Celeron® U300E (TDP up to 15W)
Security Hardware	TPM2.0
Chipset	SoC
Storage	1 x M.2 Key M 2280 socket (for NVMe storage with PCIe x4 Gen3 or SATA signal, selectable through the BIOS)
Memory	1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
Audio	na
Graphics	-
I/O Ports
USB 2.0	2 x USB2.0
USB 3.0	4 x USB 3.2 Gen2x1 (10G) type A 2 x USB 3.2 Gen1x1 (5G) type A
Serial	2 x RS-232/422/485
Video	2 x Lockable HDMI 1.4b @30Hz with 4096 x 2160 resolution
Ethernet	1 x 10/100/1000 Mbps (Intel® I210-IT) 1 x 10/100/1000 Mbps (Intel® I219-LM, supporting Intel® AMT)
Other Ports	1 x Power button 1 x Reset switch connector 1 x Remote switch 2 x Antenna Opening
Expansion
Expansion Interface	1 x Full-size PCI Express Mini Card with SIM slot 1 x M.2 Key E 2230 slot (for Wi-Fi)
Operating System
Operating System	Windows® 10, Windows 11, LINUX
Power
DC Input / Source Voltage	12VDC
Operating Temperature
Operating Temperature	-40°C to +70°C(with W.T. DRAM & SSD, CPU TDP 15W
Humidity Range	10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg)	2.5 kg
Dimensions	120 x 178 x 65 mm
Enclosure
Material	Aluminum / Steel
Mounting	Desk / Wall mounting /DIN-Rail
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE (EN 61000-6-4/EN 61000-6-2), FCC Class A, UKCA
