eBOX100A

Customize eBOX100A

* Required Fields

Your Customization
eBOX100A
eBOX100A

0.00EUR

Summary
    SKU
    eBOX100A
    Lead time 14-22 days

    0.00EUR

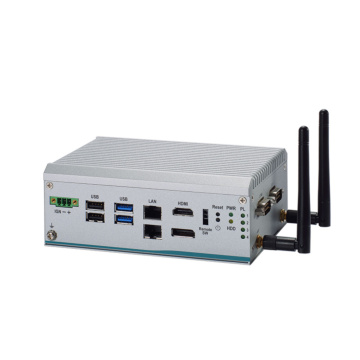

    Fanless Embedded System with Intel® Alder Lake-N Processor, 2 LAN/4 LAN, HDMI, DisplayPort++, 2 COM, 4 USB, and 9 to 36 VDC

    • Intel® processor N97 quad-core SoC (Alder Lake-N)
    • 1 DDR4 SO-DIMM, up to 32GB
    • Operating temperature ranges from -20°C to +60°C
    • Supports either two or four 2.5GbE versions
    • 4 USB with a power on/off feature and 2 COM
    • Supports HDMI (FHD) and DisplayPort++ for dual-view
    • Front-access I/O design
    System
    Processor Intel® processor N97 (Alder Lake-N) (up to 3.6GHz, 12W)
    Chipset SoC
    Storage 1 x M.2 2280 slot (NVME)
    1 x 2.5” HDD/SDD bay
    Security TPM2.0
    Memory 1 x 262-pin DDR5-4800 SO-DIMM, up to 32GB
    I/O Ports
    USB 2.0 2x USB 2.0
    USB 3.0 3x USB 3.2 Gen1
    Serial 2 x RS-232/422/485 (terminal block)
    Video 1x HDMI (FHD)
    1x DP(++
    Ethernet 2 x 2.5G Ethernet LAN, RJ-45 (Intel i226-V)

    4 x 2.5G Ethernet LAN, RJ-45 (Intel i226-V) (optional)
    Other Ports -
    Operating System
    Operating System Windows 11 IoT, Linux
    Power
    Source Voltage 9-36V DC Input
    230V AC adapter (Optional)
    Power Management
    Expansion Slots
    Expansion 1 x Full-size PCI Express Mini Card slot (USB 2.0 + PCIe + SIM signal)
    1 x M.2 Key M 2280 socket (for storage) (PCIe x2 signal)
    1 x M.2 Key E 2230 socket (for Wi-Fi 6E) (USB 2.0 signal)
    1 x Internal SIM slot for PCIe Mini Card slot

    Mounting
      Wall mount kit
    DIN-rail kit
    VESA mount kit
    Operating Temperature
    Operating Temperature 20ºC to 60ºC with wide-temp ssd/ram
    Humidity Range 10% to 90% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Fanless
    Dimensions / Weight
    Weight (kg) 1.5 kg
    Dimensions 155 x 110 x60mm
    Certification
    Certification CE / FCC
    More Information
    Manufacturer / BrandAxiomtek
    CoolingFanless
    CPU FamilyAlder Lake (12th Gen Atom X/Intel N)
