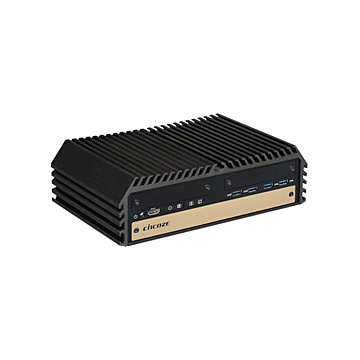

DX-1100
SKU
DX-1100_1
Lead time 14-22 days
0.00EUR
9/8th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation
- Supports 9/8th Gen Intel® Xeon® and Core™ Octa/Hexa-core Processor
- Triple Independent Display with 4K/2K UHD Resolution (HDMI / DP / DVI-I)
- 2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
- 2x USB 3.1 (10Gb/s) for Ultimate Data-transfer Speed
- 1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket
- Supports CMI Interface for I/O Expandability
- Supports PoE+ and Power Ignition Sensing (with optional CFM modules)
- Wide Operating Temperature -40°C to 70°C
- E-Mark (E13 No.10R-0515210), LVD EN62368-1, EN50121-3-2
Ominaisuudet
* Supports 8th Gen Intel® Xeon® and Core™ Hexa-core Processor
* Triple Independent Display with 4K/2K UHD Resolution (HDMI / DP / DVI-I)
* 2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
* 2x USB 3.1 (10Gb/s) for Ultimate Data-transfer Speed
* 1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket
* Supports CMI Interface for I/O Expandability
* Supports PoE+ and Power Ignition Sensing (with optional CFM modules)
* Wide Operating Temperature -40°C to 70°C
* Triple Independent Display with 4K/2K UHD Resolution (HDMI / DP / DVI-I)
* 2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
* 2x USB 3.1 (10Gb/s) for Ultimate Data-transfer Speed
* 1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket
* Supports CMI Interface for I/O Expandability
* Supports PoE+ and Power Ignition Sensing (with optional CFM modules)
* Wide Operating Temperature -40°C to 70°C
Spesifikaatiot
| System | |
| Processor | * Xeon E2176 Hexa Core, 80W, (with FAN) * 8th gen Intel® Core™, 35 ~ 65W * Pentium, Celeron |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® C246 |
| Storage | 2x 2.5” SATA3.0 HDD/SSD Bay, 3x mSATA (shared by Mini-PCIe socket) |
| Storage Support | |
| Memory | 2 x DDR4 SO-DIMM slot, up to 32GB |
| Graphics | Intel® HD Graphics supports triple independent display |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 6x USB 3.0 2x USB 3.1 |
| Serial | 4x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 |
| Video | 1 x DVI-I 1 x DP 1x HDMI |
| Ethernet | 2x GbE LAN *GbE1: Intel® I219-LM *GbE2: Intel® I210 (Support WoL, Teaming, Jumbo Frame and PXE) |
| Other Ports | Mic-in/Line-out Optical Isolated DIO (with optional CMI module) (4x DI/4x DO, 10-Pin Terminal Block ) 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1x CFM Interface 3x CMI Interfaces 3x Full-size Mini-PCIe Sockets 1x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 35W TDP CPU -40°C ~ +45°C with W.T. SSD, 65W TDP CPU -40°C ~ +40°C with W.T. SSD, 80W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.6 kg |
| Dimensions | 242 x 174 x 77 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified, E-Mark,EN50155, EN50121-3-2 |
| Manufacturer / Brand | Cincoze |
|---|---|
| Cooling | Fanless |
