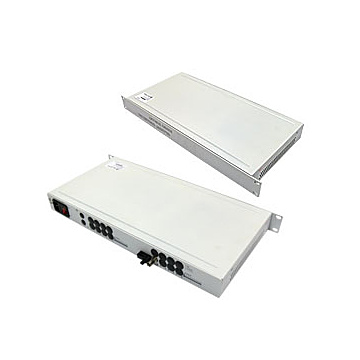

19" Multiplexer 1-ch video-multimode transmitter and receiver
SKU
dv1000zmt+r
Lead time 8-16 days
564.75EUR 450.00EUR
1-channel video over fiber optic multiplexer. Multimode SC-SC. 19" räkkiasennettava. AC230V. Includes transmitter and receiver.
Details
*Digital signal transmission.
*No configuration required.
*Supports PAL, NTSC, SECAM video.
*Working distance up to 2km.
*19" rack mounting.
*AC230V power.
*No configuration required.
*Supports PAL, NTSC, SECAM video.
*Working distance up to 2km.
*19" rack mounting.
*AC230V power.
Package includes
1x 19" Multiplexer 1-ch video-fiber multimode SC transmitter
1x 19" Multiplexer 1-ch video-fiber multimode SC receiver
2x Power cable EU-plug
1x English manual
1x 19" Multiplexer 1-ch video-fiber multimode SC receiver
2x Power cable EU-plug
1x English manual
Specifications
| Video interface | |
| Input/output impedance | BNC 75 ohm unbalance interface |
| Input/output voltage | peak 1 vpp, max 1.5 Vpp |
| Signal | PAL/NTSC/SECAM |
| Video bandwidth | 8MHZ |
| Video number wide | 8/10/12 bit |
| Differential gain | |
| Differential phase | |
| Slope | |
| Luminance delay inequality | 10ns |
| Luminance gain gap | ±10% |
| Weighted noise ratio | 66db |
| Working environment | |
| Work temperature | -30~+75 |
| storage temperature | -45~+85 |
| Humidity | 0-95% without condensation |
| Input voltage | AC230V |
| Size | 44x22x4cm |
