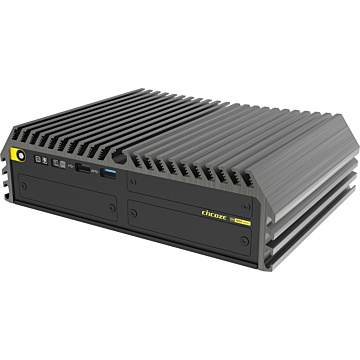

    9/8th Gen. Intel® Core™ Series High Performance and Essential Rugged Embedded Computer

    • Supports 9/8th Gen Intel® Core™ i7/i5/i3 or Pentium®/Celeron® processors (up to 65W)
    • Compact size (224 x 162 x 64 mm)
    • 1 x M.2 2280 key M socket, auto-detection for NVMe/SATA SSD
    • 1 x M.2 2230 key E for Intel® CNVi/wireless module
    • 2 x Full-size Mini PCIe sockets for module expansion
    • Optional CMI/MEC modules for I/O expansion
    • Wide operating temperature: -40°C to 70°C
    • Military standard (MIL-STD-810G) shock & vibration proof
    • Railway EMC standard EN50155 (EN 50121-3-2 only) certified
    System
    Processor 8th/9th Gen Intel Coffee Lake-R S Series CPU

    Security Hardware
    Chipset Intel H310 Chipset
    Storage 1x 2.5” SATA HDD/SSD Bay
    2x mSATA Socket (shared by Mini-PCIe socket)
    M.2 Key M 2280 Socket, Support SATA SSD and NVMe PCIe
    Storage Support
    Memory 1x DDR4 SO-DIMM Socket, Support Up to 32GB
    Graphics Integrated Intel® UHD Graphics 630
    I/O Ports
    USB 2.0 3x USB2.0
    USB 3.0 3x USB 3.2
    Serial 2x RS-232/422/485
    Video 1 x VGA (1920 x 1200 @60Hz)
    1 x DisplayPort  (4096 x 2304@60Hz)
    Ethernet 2x GbE LAN , RJ-45
    Other Ports Mic-in/Line-out
    1x Remote Power On/Off Connector
    Expansion
    Expansion Interface 1x CFM Interface (Control Function Module)
    1x CMI (Combined Multiple I/O) High Speed Interface
    2x Low Speed CMI Interface for optional CMI Module Expansion
    2x Full-size Mini-PCIe Sockets
    1x SIM Socket
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    IGN function with optional module
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 2.3 kg
    Dimensions 224 x 162 x 64 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification • CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway)


    More Information
    Manufacturer / BrandCincoze
    CoolingFanless
    CPU FamilyCoffee Lake Refresh (9th Gen Core i3/i5/i7)
    Operating TempWide Temp -40..70C
