DSP600-211

Customize DSP600-211

* Required Fields

Your Customization
DSP600-211
DSP600-211

0.00EUR

Summary
    SKU
    DSP600-211-V1807B
    Lead time 21-30 days

    0.00EUR

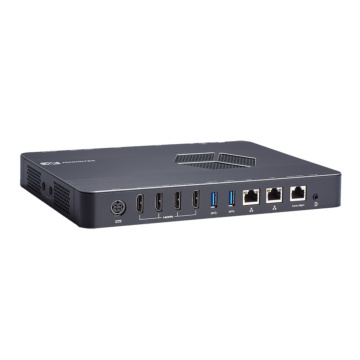

    4K Digital Signage Player with AMD Ryzen™ Embedded V1000 Series, 4 HDMI, 2 GbE LAN and 4 USB
    System
    Processor AMD Ryzen™ Embedded Quad Core V1807B
    CPU Performance
    Security Hardware
    Chipset SoC
    Storage 1 x M.2 Key M 2280 (SATA)
    1 x M.2 Key M 2280 (NVMe)
    Storage Support
    Memory 2 x DDR4-2400 SO-DIMM, up to 16GB
    Audio
    Graphics 4 x HDMI 2.0 (4K supported)
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.0 2x USB 3.1
    Serial 2x RS-232
    Video 4 x HDMI 2.0 (4K supported)
    Ethernet 2x GbE LAN , RJ-45
    Optional Mec-Lan Module:
    - 2x RJ45 GbE LAN Module
    Other Ports Line-out
    1x Remote Power On/Off Connector
    4x Antenna opening
    Expansion
    Expansion Interface 1 x M.2 Key E for Wi-Fi/BT
    1 x M.2 Key B for 4G/LTE
    1 x SIM card slot
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 12VDC
    Operating Temperature
    Operating Temperature 0°C ~ +40°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 1.9 kg
    Dimensions 250 x 182 x 30 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE
    More Information
    CoolingCPU tuuletin
