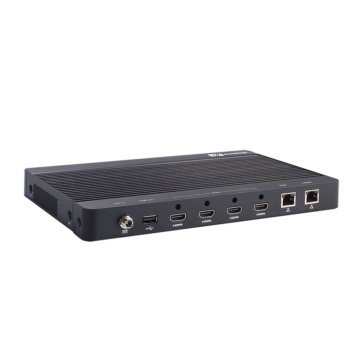

    Digital Signage Player with 11th Gen Intel® Core™ i5/i3 & Celeron® Processor, 4 HDMI, 4 USB and 2.5G LAN

    • 11th gen Intel® Core™ i5/i3 & Celeron® processor (Tiger Lake)
    • 2 DDR4-3200 SO-DIMM for up to 64GB
    • 4 HDMI 2.0 w/4K supported
    • 4 USB, 1 2.5G LAN and 1 GbE LAN
    • 1 M.2 Key E 2230 for Wi-Fi/BT
    • 1 M.2 Key B 3052 for 5G/4G LTE
    • 1 M.2 Key M 2280 for storage
    System
    Processor 11th gen Intel® Core™ i5/i3 & Celeron® processor (Tiger Lake)
    Security Hardware
    Chipset SoC integrated
    Storage 1 x M.2 Key M 2280 (SATA & NVMe)
    Memory 2 x DDR4-3200 SO-DIMM, max. up to 64GB
    Audio
    Graphics 4 x HDMI 2.0 (4K supported)
    I/O Ports
    USB 2.0 -
    USB 3.0 2x USB 3.2
    Serial 1x RS-232
    Video 4 x HDMI 2.0 (4K supported)
    Ethernet 1x GbE LAN , RJ-45
    1x 2.5GbE LAN , RJ-45
    Other Ports Audio jack (combo)
    1x Remote Power On/Off Connector
    4x Antenna opening
    Expansion
    Expansion Interface 1 x M.2 Key E for Wi-Fi/BT
    1 x M.2 Key B for 5G/4G LTE
    1 x SIM card slot
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 12VDC
    Operating Temperature
    Operating Temperature 0°C ~ +50°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 1.3 kg
    Dimensions 260 x 160 x 26 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    More Information
    CoolingFanless
