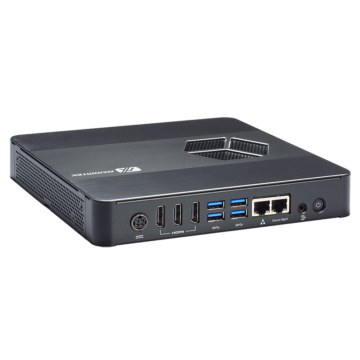

    Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, 3 HDMI 2.0, 4 USB and GbE LAN
    System
    Processor 8th gen Intel® Core™ i7/i5/i3 & Pentium® processor
    CPU Performance Intel® Core™ i7-8700T Hexa Core processor 2.4GHz 12MB Cache, TDP 35W
    Intel® Core™ i5-8500T Hexa Core processor 2.4GHz 12MB Cache, TDP 35W
    Intel® Core™ i3-8100T Hexa Core processor 2.1GHz 9MB Cache, TDP 35W
    Security Hardware
    Chipset Intel Q370
    Storage 1 x M.2 Key M 2280 (SATA & NVMe)
    Storage Support
    Memory 2 x DDR4-2666 SO-DIMM, up to 32GB
    Audio
    Graphics 3 x HDMI 2.0 (4K supported)
    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.1
    Serial 1x RS-232
    Video 3 x HDMI 2.0 (4K supported)
    Ethernet 1x GbE LAN , RJ-45
    Other Ports Line-out
    1x Remote Power On/Off Connector
    4x Antenna opening
    Expansion
    Expansion Interface 1 x M.2 Key E 2230 for Wi-Fi/BT
    1 x M.2 Key B 3042 for 4G/LTE
    1 x SIM card slot
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 12VDC
    Operating Temperature
    Operating Temperature 0°C ~ +40°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 1.9 kg
    Dimensions 202 x 196 x 39 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE
    More Information
    CoolingCPU tuuletin
