DS-1401
SKU
DS-1401
Lead time 21-30 days
0.00EUR

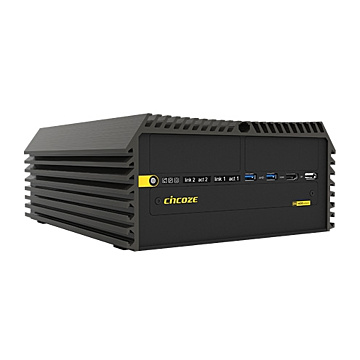

12th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot
- 16-core 12th-gen Intel® Core™ i9/i7/i5/i3 CPU (max 65 W TDP)
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- 3x full-size Mini PCIe sockets, 2x SIM card slots
- 1x PCI/PCIe expansion slot
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
| System | |
| Processor | 12th gen Intel® Core™ 35 ~ 65W |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® R680E Chipset |
| Storage | 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD Support RAID 0/1/5/10 |
| Storage Support | |
| Memory | 2x DDR4 SO-DIMM Socket, Support Up to 64GB ( Un-buffered and non-ECC) Xeon / i9 / i7 Processor Supports Up to 2933MHz i5 / i3 Processor Supports Up to 2666 MHz Pentium / Celeron Processor Supports Up to 2400MHz |
| Graphics | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® Supports Quad Independent Display |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.2 | 4x USB 3.2 (5Gbps) 2x USB 3.2 (10Gbps) |
| Serial | 2x RS-232/422/485 Optional CMI Module: -4x Isolated COM Module -4x COM Moduled |
| Video | 1 x HDMI 2 x DisplayPort 1 x VGA |
| Ethernet | 2x GbE LAN , RJ-45 Optional CMI Module: - 4x RJ45 GbE LAN Module (Intel® I210AT) - 4x M12 GbE LAN Module (Intel® I210AT) |
| Other Ports | Mic-in/Line-out 1x PS2 keyboard/mouse 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 1x CFM Interface (Control Function Module) 2x CMI (Combined Multiple I/O) High Speed Interface 2x CMI (Combined Multiple I/O) Low Speed Interface 3x Full-size Mini-PCIe Sockets 2x SIM Socket 1x PCIe /PCI -slot |
| Operating System | |
| Operating System | Windows® 10 / Windows® 11 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 35W TDP CPU -40°C ~ +50°C with W.T. SSD, 65W TDP CPU (with external Fan kit) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Shock | MIL-STD-810G |
| Vibration | MIL-STD-810G |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.5 kg |
| Dimensions | 227 x 261 x 88 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A EN 50155 (EN 50121-3-2 Only) |
| Manufacturer / Brand | Cincoze |
|---|---|
| Cooling | Fanless |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
