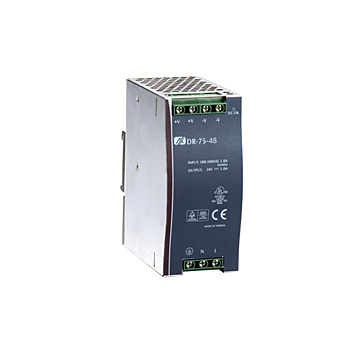

DR-75-48
SKU
DR-75-48
Lead time 14-22 days
75W/1.6A DIN-rail 48VDC Industrial Power Supply, 110~230VAC
Details
* Input: 85 to 264VAC (47 to 63Hz) or 120 to 370VDC
* Output: 76.8W, 48VDC, 0 to 1.6A
* Overvoltage protection: 58 to 65V
* Overload protection: 105 to 150% rated output power
* Protection type: Constant current limiting, recovers automatically
* Inrush currrent: 20A/115VAC or 40A/230VAC
* Satety: UL508, TUV EN60950-1 approved
* EMI conduction & radiation: EN55011, EN55022 (CISPR22) Class B
* EMS immunity: EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2,(EN50082-2) heavy industry level, criteria A
* Dimensions (W x D x H): 55.5mm x 100mm x 125.2mm
* Output: 76.8W, 48VDC, 0 to 1.6A
* Overvoltage protection: 58 to 65V
* Overload protection: 105 to 150% rated output power
* Protection type: Constant current limiting, recovers automatically
* Inrush currrent: 20A/115VAC or 40A/230VAC
* Satety: UL508, TUV EN60950-1 approved
* EMI conduction & radiation: EN55011, EN55022 (CISPR22) Class B
* EMS immunity: EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2,(EN50082-2) heavy industry level, criteria A
* Dimensions (W x D x H): 55.5mm x 100mm x 125.2mm
| Input Voltage | 230VAC , 1-Phase |
|---|---|
| Output voltage | DC48V |
| Power | 5W |
| Applications | Indoor |
