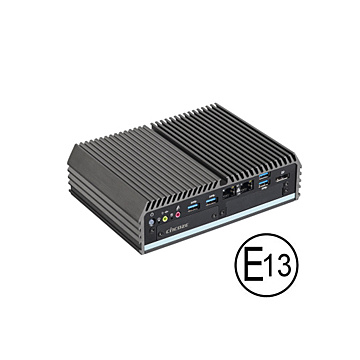

DC-1200

Customize DC-1200
DC-1200

* Required Fields

Your Customization
DC-1200
DC-1200

0.00EUR

Summary
    SKU
    DC-1200-N42_bund
    Lead time 21-30 days

    0.00EUR

    • Onboard Intel® Pentium® N4200 Processor
    • Supports Triple Independent Display
    • Supports CMI Interface for I/O Expandability
    • Supports PoE+ and Power Ignition Function (with optional CFM modules)
    • 1x 2.5” SATA Drive Bay, 1x mSATA Socket
    • 2x Full Size Mini-PCIe Socket, 2x SIM Card Socket
    • Compact Size (185 x 131 x 56.5 mm)
    • Wide Operating Temperature -40°C to 70°C
    • E-Mark (E13, No. 10R-0515075), LVD EN60950-1

    Spesifikaatiot
    System
    Processor Intel® Pentium® N4200 Quad Core Processor
    CPU Performance up to 2.50 GHz
    Security Hardware
    Chipset SoC
    Storage 2.5” SSD drive bay
    Storage Support
    Memory 1 x DDR3L SO-DIMM slot, up to 8GB
    Graphics Integrated Intel® HD Graphics 505 (Pentium® N4200)
    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.0
    Serial 2x RS-232/422/485
    (with Auto Flow Control (Supports 5V/12V))
    Video 1 x DVI-D, 1 x DP
    Ethernet 2x GbE LAN , RJ-45
    Optional CMI Module:
    - 4x RJ45 GbE LAN Module (Intel® I210AT)
    - 4x M12 GbE LAN Module (Intel® I210AT)
    Other Ports Mic-in/Line-out
    1x Remote Power On/Off Connector
    Expansion
    Expansion Interface 2x CFM Interface (Control Function Module)
    2x CMI (Combined Multiple I/O)
    2x Full-size Mini-PCIe Sockets
    2x SIM Socket
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.8 kg
    Dimensions 185 x 131 x 56.5 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting/DIN
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC e-mark
    More Information
    CoolingFanless
    CPU FamilyApollo Lake (Celeron/Pentium)
    Operating TempWide Temp -40..70C
