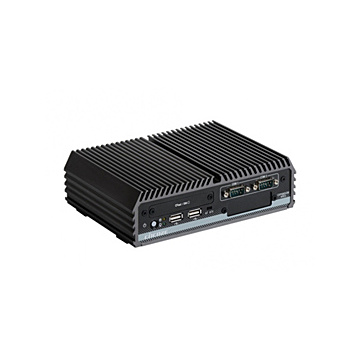

DC-1100
SKU
dc-1100
Lead time 21-30 days
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 1x DDR3L SO-DIMM Max. up to 8 GB
- Dual Independent Display from 1x DVI-I and 1x DisplayPort
- 2x Intel® GbE port support Wake-on-LAN and PXE
- 1x USB 3.0, 3x USB 2.0
- 4x RS232/422/485 port with 5V/12V power
- 4x Isolated DI, 4x Isolated DO
- 1x 2.5” SATA SSD/HDD bay
- 1x CFast card and 1x SIM card socket
- 9~48VDC power input, support AT/ATX mode
- 2x Mini-PCIe slot for Wi-Fi / GSM / I/O expansion
- Universal I/O bracket for Mini-PCIe expansion
- E-Mark (E13, No.10R-0514062) Certified
Spesifikaatiot
| System | |
| Processor | Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 Ghz |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1x 2.5" SATA SSD/HDD Bay 1x External CFast Socket |
| Storage Support | |
| Memory | 1x 204-Pin DDR3L 1066 / 1333MHz SO-DIMM (un-buffered and non-ECC), max. up to 8 GB |
| Graphics | 1x DVI-I 1x DisplayPort |
| I/O Ports | |
| USB 2.0 | 3x USB2.0 |
| USB 3.0 | 1x USB 3.0 |
| Serial | 4x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 |
| Video | 1 x DVI-I, 2 x DP |
| Ethernet | 2x Intel® I210-AT GbE LAN Port, Support Wake-on-LAN and PXE |
| Other Ports | Mic-in/Line-out DIO: 4x Isolated DI / 4x Isolated DO |
| Expansion | |
| Expansion Interface | 2x Full-size Mini-PCIe Sockets 1x SIM Socket |
| Operating System | |
| Operating System | Windows® 7/8/10, Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.6 kg |
| Dimensions | 185 x 131 x 54 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Wall mount / VESA mount / DIN Rail Mount / Side Mount/ |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified, E-Mark |
| Cooling | Fanless |
|---|
