CV-119C
SKU
cv-119C
Lead time 21-30 days

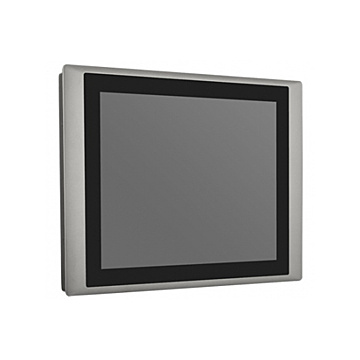

19" TFT SXGA 5:4 Display Module with Projected Capacitive Touch
Details
* 19" TFT SXGA 5:4 LCD with Resistive 5-wire / Projected Capacitive Touch
* 50,000 hrs LED Backlight Life
* Resolution up to 1280 x 1024 (SXGA)
* 350 nits Brightness
* Designed with Aluminum Die-cast Front Frame
* IP 65 Compliant Front Panel
* Convertible Display System (CDS) Supported
* 50,000 hrs LED Backlight Life
* Resolution up to 1280 x 1024 (SXGA)
* 350 nits Brightness
* Designed with Aluminum Die-cast Front Frame
* IP 65 Compliant Front Panel
* Convertible Display System (CDS) Supported
Specifications
| Display | |
| Screen Size | 19" TFT LCD |
| Screen Resolution | 1280x1024 (SXGA) |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 350 nits |
| Viewing Angle | 170/160 |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) Resistive 5-wire (Single touch) GLASS |
| I/O Ports | |
| Video | According to CDS module |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -0ºC to 60ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 7,0 kg |
| Dimensions | 510 x 390 x 63 mm |
| Enclosure | |
| Bezel | IP65 front panel, flat surface |
| Material | Aluminum |
| Mounting | by CDS module |
| Note * | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 19" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | CDS |
