CV-115C
SKU
cv-115C
Lead time 21-30 days

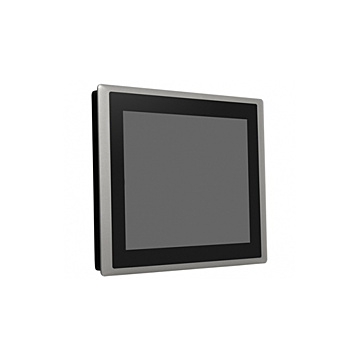

15" TFT XGA 4:3 Display Module with Projected Capacitive Touch
Details
* 15" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
* 50,000 hrs LED Backlight Life
* Resolution up to 1024 x 768 (XGA)
* 350 nits Brightness
* Designed with Aluminum Die-cast Front Frame
* IP 65 Compliant Front Panel
* Convertible Display System (CDS) Supported
* 50,000 hrs LED Backlight Life
* Resolution up to 1024 x 768 (XGA)
* 350 nits Brightness
* Designed with Aluminum Die-cast Front Frame
* IP 65 Compliant Front Panel
* Convertible Display System (CDS) Supported
Specifications
| Display | |
| Screen Size | 15" TFT LCD |
| Screen Resolution | 1024x768 (XGA) |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 350 nits |
| Viewing Angle | 160/150 |
| Number of Colors | 16.2M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) Resistive 5-wire (Single touch) |
| I/O Ports | |
| Video | According to CDS module |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -0ºC to 60ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 4,4 kg |
| Dimensions | 408 x 312 x 59 mm |
| Enclosure | |
| Bezel | IP65 front panel, flat surface |
| Material | Aluminum |
| Mounting | by CDS module |
| Note * | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 15" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | CDS |
