CS-117C
SKU
CS-117C
Lead time 21-30 days

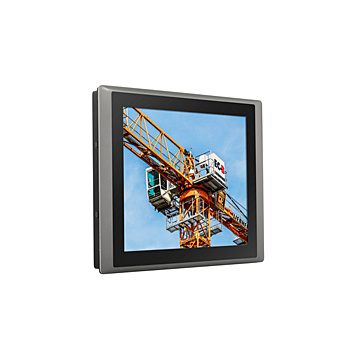

17" TFT-LCD 1500 nits SXGA 5:4 Display Module with Projected Capacitive Touch
Details
* 17” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1280 x 1024 (SXGA)
* Wide Range Operating Temperature -20°C to 70°C
* True Flat IP65 Front Panel Protection
* Rugged Aluminum Die-casting Bezel
* Convertible Display System (CDS) Technology Supported
* Wide Range Operating Temperature -20°C to 70°C
* True Flat IP65 Front Panel Protection
* Rugged Aluminum Die-casting Bezel
* Convertible Display System (CDS) Technology Supported
Specifications
| Display | |
| Screen Size | 17" TFT LCD |
| Screen Resolution | 1280x1024 (SXGA) |
| Display Ratio | 5 ::4 |
| Contrast Ratio | |
| Brightness | 1500 nits |
| Viewing Angle | 160/140 |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| Video | According to CDS module |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -20ºC to 70ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 5,6 kg |
| Dimensions | 450 x 350 x 63 mm |
| Enclosure | |
| Bezel | IP65 front panel, flat surface |
| Material | Aluminum |
| Mounting | by CDS module |
| Note * | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 17" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | CDS |
