CS-115C
SKU
CS-115C
Lead time 21-30 days

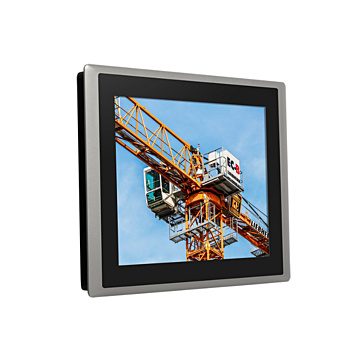

15" TFT-LCD 1600 nits SVGA 4:3 Display Module with Projected Capacitive Touch
Details
* 15" TFT-LCD with Ultra High Brightness up to 1,500 nits and 1024 x 768 (XGA)
* Wide Range Operating Temperature -20°C to 70°C
* True Flat IP65 Front Panel Protection
* Rugged Aluminum Die-casting Bezel
* Convertible Display System (CDS) Technology Supported
* Wide Range Operating Temperature -20°C to 70°C
* True Flat IP65 Front Panel Protection
* Rugged Aluminum Die-casting Bezel
* Convertible Display System (CDS) Technology Supported
Specifications
| Display | |
| Screen Size | 15" TFT LCD |
| Screen Resolution | 1024x768 (XGA) |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 1600 nits |
| Viewing Angle | 160/150 |
| Number of Colors | 16.2M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| Video | According to CDS module |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -20ºC to 70ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 4,4 kg |
| Dimensions | 408 x 312 x 59 mm |
| Enclosure | |
| Bezel | IP65 front panel, flat surface |
| Material | Aluminum |
| Mounting | by CDS module |
| Note * | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 15" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | CDS |
