Moxa CP-118EL Multiport Serial Board
SKU
CP-118EL
Lead time 14-22 days
8-port RS-232/422/485 PCI Express Smart Serial Board.
Details

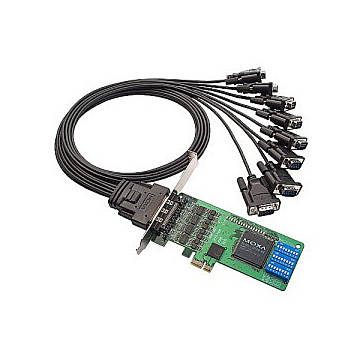

Moxa CP-118EL is a Smart PCI Express Multiport Serial Board designed for POS and ATM
applications, and for use by industrial automation system manufacturers and system integrators.
Moxa CP-118EL is compatible with all popular operating systems, and each of its
8 RS-232/422/485 serial ports supports data rates of up to 921.6 Kbps, and provides full
modem control signals, ensuring compatibility with a wide range of serial peripherals.
Main Features:
* Fits any PCI Express slot
* PCI Express x1 compliant
* Serial communication speed up to 921.6 Kbps
* 128-byte FIFO and on-chip H/W, S/W flow control
* Various connection cables/boxes for RS-232/422/485
* Low profile board for compact-sized PCs
* Windows 2003/XP/2000, Linux, Unix driver support
* On-board 15 KV ESD protection
Please do not hesitate to contact us with any question or concern you may have and we
would be happy to assist you.
applications, and for use by industrial automation system manufacturers and system integrators.
Moxa CP-118EL is compatible with all popular operating systems, and each of its
8 RS-232/422/485 serial ports supports data rates of up to 921.6 Kbps, and provides full
modem control signals, ensuring compatibility with a wide range of serial peripherals.
Main Features:
* Fits any PCI Express slot
* PCI Express x1 compliant
* Serial communication speed up to 921.6 Kbps
* 128-byte FIFO and on-chip H/W, S/W flow control
* Various connection cables/boxes for RS-232/422/485
* Low profile board for compact-sized PCs
* Windows 2003/XP/2000, Linux, Unix driver support
* On-board 15 KV ESD protection
Please do not hesitate to contact us with any question or concern you may have and we
would be happy to assist you.
Package includes
1 x Moxa CP-118EL board with standard bracket, and Low Profile bracket
1 x Document & Software CD-ROM
1 x Quick Installation Guide
1 x Document & Software CD-ROM
1 x Quick Installation Guide
Specifications
Hardware
* Connectors: SCSI VHDCI 68
* Comm. Controller: MU860 (16C550C compatible)
Interface
* Bus Interface: PCI Express x1
* Number of Ports: 8 (only one IRQ required)
* Max. No. of Boards: 4
Performance
* Baudrate: 50 bps to 921.6 Kbps
Configuration
* Data Bits: 5, 6, 7, 8
* Stop Bits: 1, 1.5, 2
* I/O address/IRQ: BIOS assigned
* Parity: None, Even, Odd, Space, Mark
* Flow Control: RTS/CTS, XON/XOFF
* RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
* RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
* 4w RS-485: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
* 2w RS-485: Data+(B), Data-(A), GND
Power and Environment
* Power Requirement: 860 mA (3.3V)
* Operating Temperature: 0 to 55°C
* Operating Humidity: 5 to 95% RH
* Storage Temperature: -20 to 85°C
* Surge Protection: Embedded 15 KV ESD Surge Protection
* Regulatory Approvals: EN55022 Class B, EN55024, EN6100-3-2, EN61000-3-3, FCC Part 15 Class B
For further information download the datasheet (above) or manual (below).
* Connectors: SCSI VHDCI 68
* Comm. Controller: MU860 (16C550C compatible)
Interface
* Bus Interface: PCI Express x1
* Number of Ports: 8 (only one IRQ required)
* Max. No. of Boards: 4
Performance
* Baudrate: 50 bps to 921.6 Kbps
Configuration
* Data Bits: 5, 6, 7, 8
* Stop Bits: 1, 1.5, 2
* I/O address/IRQ: BIOS assigned
* Parity: None, Even, Odd, Space, Mark
* Flow Control: RTS/CTS, XON/XOFF
* RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
* RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
* 4w RS-485: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
* 2w RS-485: Data+(B), Data-(A), GND
Power and Environment
* Power Requirement: 860 mA (3.3V)
* Operating Temperature: 0 to 55°C
* Operating Humidity: 5 to 95% RH
* Storage Temperature: -20 to 85°C
* Surge Protection: Embedded 15 KV ESD Surge Protection
* Regulatory Approvals: EN55022 Class B, EN55024, EN6100-3-2, EN61000-3-3, FCC Part 15 Class B
For further information download the datasheet (above) or manual (below).
