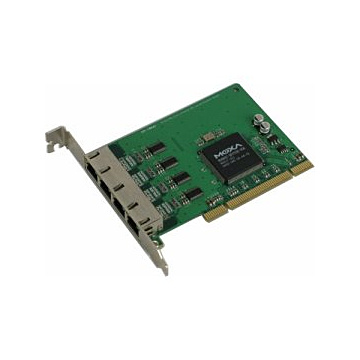

Moxa CP-104JU V2 Universal PCI Serial Board
SKU
CP-104JU V2
Lead time 14-22 days
Top performance 4-port RS-232 Universal PCI Smart Serial Board. 8-pin RJ45 connector.
Details
Moxa CP-104JU V2 is a Smart Universal PCI Multiport Serial Board designed for POS and ATM
applications, and for use by industrial automation system manufacturers and system integrators.
Moxa CP-104JU V2 is compatible with all popular operating systems, and each of its 4 RS-232
serial ports supports data rates of up to 921.6 Kbps, and provides full modem control signals,
ensuring compatibility with a wide range of serial peripherals.
In addition, Moxa CP-104JU V2 works with both 3.3V and 5V PCI buses, allowing the board to be
installed in virtually any available PC server.
Main Features
* Over 800 Kbps data throughput, for top performance
* Serial communication speed up to 921.6 Kbps
* 128-byte FIFO and on-chip H/W, S/W flow control
* Universal PCI compatible, with 3.3/5V PCI and PCI-X
* Windows 2003/XP/2000/98/ME, Linux, UNIX driver support
* On-board 15 KV ESD protection
applications, and for use by industrial automation system manufacturers and system integrators.
Moxa CP-104JU V2 is compatible with all popular operating systems, and each of its 4 RS-232
serial ports supports data rates of up to 921.6 Kbps, and provides full modem control signals,
ensuring compatibility with a wide range of serial peripherals.
In addition, Moxa CP-104JU V2 works with both 3.3V and 5V PCI buses, allowing the board to be
installed in virtually any available PC server.
Main Features
* Over 800 Kbps data throughput, for top performance
* Serial communication speed up to 921.6 Kbps
* 128-byte FIFO and on-chip H/W, S/W flow control
* Universal PCI compatible, with 3.3/5V PCI and PCI-X
* Windows 2003/XP/2000/98/ME, Linux, UNIX driver support
* On-board 15 KV ESD protection
Package includes
1 x Moxa CP-104JU V2 4-port RS-232 Universal PCI Smart Serial Board
1 x Moxa Software and Documentation CD-ROM
1 x Quick Installation Guide
1 x Moxa Software and Documentation CD-ROM
1 x Quick Installation Guide
Specifications
Hardware
* Connectors: 8-pin RJ45
* Communication Controller: MU860 (16C550C compatible)
Interface
* Bus: 32-bit Universal PCI
* Serial: RS-232
* No. of Ports: 4
* Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Performance
* Baudrate: 50 bps to 921.6 Kbps
* Max. No. of Boards: 4 (only one IRQ required)
Configuration
* Parity: None, Even, Odd, Space, Mark
* Data Bits: 5, 6, 7, 8
* Stop Bits: 1, 1.5, 2
* IRQ, I/O Address: BIOS assigned
* Flow Control: RTS/CTS, XON/XOFF
Operating Systems
* Windows Vista (X86 & X64)/NT/2000/XP/2003/95/98/ME
* Linux 26/2.4 (Red Hat, SuSe, etc.)
* FreeBSD, SCO OpenServer, SCO Unixware 7, SCO Unixware 2.1
* Embedded Windows XP, QNX, DOS
Power and Environment
* Power Requirements: 135 mA (+5V)
* Operating Temperature: 0 to 55°C
* Operating Humidity: 5 to 95% RH
* Storage Temperature: -20 to 85°C
* Dimensions (W x D): 64.5 x 120 mm
* Surge Protection: Embedded 15 KV ESD Surge Protection
* Regulatory Approvals: EN55022 Class B, EN55024, EN6100-3-2, EN61000-3-3,FCC Part 15 Class B
For further information download the datasheet (above) or manual (below).
* Connectors: 8-pin RJ45
* Communication Controller: MU860 (16C550C compatible)
Interface
* Bus: 32-bit Universal PCI
* Serial: RS-232
* No. of Ports: 4
* Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Performance
* Baudrate: 50 bps to 921.6 Kbps
* Max. No. of Boards: 4 (only one IRQ required)
Configuration
* Parity: None, Even, Odd, Space, Mark
* Data Bits: 5, 6, 7, 8
* Stop Bits: 1, 1.5, 2
* IRQ, I/O Address: BIOS assigned
* Flow Control: RTS/CTS, XON/XOFF
Operating Systems
* Windows Vista (X86 & X64)/NT/2000/XP/2003/95/98/ME
* Linux 26/2.4 (Red Hat, SuSe, etc.)
* FreeBSD, SCO OpenServer, SCO Unixware 7, SCO Unixware 2.1
* Embedded Windows XP, QNX, DOS
Power and Environment
* Power Requirements: 135 mA (+5V)
* Operating Temperature: 0 to 55°C
* Operating Humidity: 5 to 95% RH
* Storage Temperature: -20 to 85°C
* Dimensions (W x D): 64.5 x 120 mm
* Surge Protection: Embedded 15 KV ESD Surge Protection
* Regulatory Approvals: EN55022 Class B, EN55024, EN6100-3-2, EN61000-3-3,FCC Part 15 Class B
For further information download the datasheet (above) or manual (below).
| Manufacturer / Brand | Moxa |
|---|---|
| Connection | RS-232 |
| Data Interface | PCI |
