CO-W121C

SKU
CO-W121C
Lead time 21-30 days

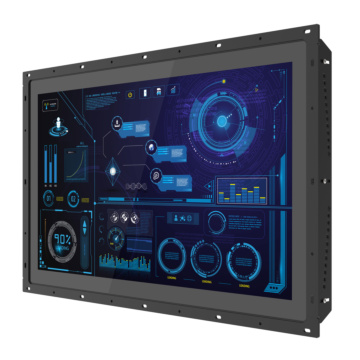

21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch

  • 21.5" TFT-LCD with Projected Capacitive Touch
  • Cincoze Patent CDS Technology Support
  • Designed with Adjustable Mounting Bracket
  • Support Flat / Standard / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
Display
Screen Size 21.5" TFT LCD
Screen Resolution 1920x1080
Display Ratio 16 ::9
Contrast Ratio 5000 ::1
Brightness 300 nits
Viewing Angle 178 (H) / 178 (V)
Number of Colors
Touch Screen
Touchscreen PCAP
I/O Ports
Video with Monitor or PC module (CDS)
Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage
Power Management
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature 0ºC to 70ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 7.2 kg
Dimensions 550 x 343.7 x 63.3mm
Enclosure
Bezel
Material Steel
Mounting Flat / Standard/ VESA/ Rack mount
Protection Front Panel IP65 Compliant * According to IEC60529
Certification
Certification CE / FCC
More Information
Manufacturer / BrandCincoze
Display Size21.5"
Touch typeProjected Capasitive (PCAP)
Signal inputCDS
