CO-119C

SKU
CO-119c
Lead time 21-30 days

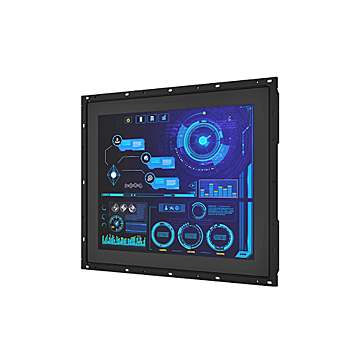

19" TFT-LCD Open Frame Display Module

  • 19" TFT-LCD with Projected Capacitive Touch
  • Cincoze Patent CDS Technology Support
  • Designed with Adjustable Mounting Bracket
  • Support Flat / Standard / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
Display
Screen Size 19" TFT LCD
Screen Resolution 1280 x 1024
Display Ratio 4 ::3
Contrast Ratio 1000:1
Brightness 350 nits
Viewing Angle 170 / 160 degree
Number of Colors 16.7M
Touch Screen
Touchscreen Projected Capacitive (Multi-touch)
I/O Ports
Video According to CDS module
(M-series monitor module or PC module)
Other Ports
Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 80% non-condensing
Dimensions / Weight
Weight (kg) 6.9 kg
Dimensions 473 x 398 x 63 mm
Enclosure
Bezel IP65 front panel
Material Aluminium
Mounting Flat / Standard / VESA / Rack Mount
Pre-installed Mounting Bracket with Adjustable Design
(Support 11 different stages of adjustment)


Certification
Certification CE, UKCA, FCC, ICES-003 Class A
More Information
Manufacturer / BrandCincoze
Display Size19"
Touch typeProjected Capasitive (PCAP)
Signal inputCDS
