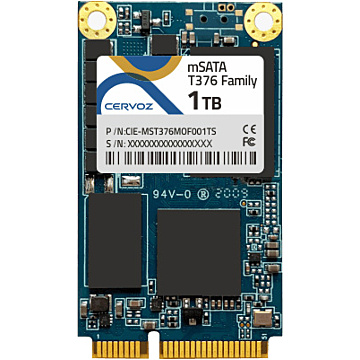

1TB mSATA SSD, TLC Ind, T376, Wide-Temp, Power-Guard
SKU
CIE-MST376MOF001TW
Lead time 21-30 days
T376 Family
Industrial mSATA Embedded Module
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 128GB ~ 1TB
- Powerguard Function(Power Loss Protection)
- Write Protect Function (Optional)
- Support AES 256-bit Encryption
- With DRAM Buffer SLC write cache technology
- Low power consumption
- Shock resistance and anti-vibration
| Form Factor | |
| Form Factor | mSATA SSD |
| Product grouping | T376 Family (Powerguard Function) |
| System | |
| Interface | SATA3 |
| Connector | mSATA |
| NAND Flash type | 3D TLC NAND |
| Capacity | 128GB256GB/512GB/1TB |
| Sequential Read | up to 560MB/s |
| Sequential Write | up to 480MB/s |
| DRAM buffer | Included |
| ECC Scheme | Applies the LDPC (Low Density Parity Check) of ECC algorithm |
| MTBF | >3,000,000 hours |
| Low Power Management | DIPM / HIPM mode |
| Supply Voltage | +5V DC ± 5% |
| Dimensions | 50.80*29.85*4.00mm |
| Manufacturer / Brand | Cervoz |
|---|---|
| Capacity | 1TB |
| Interface (Connector) | mSATA |
| Data Interface | SATA3 |
| Operating Temp | Extreme Wide Temp -40..85C |
