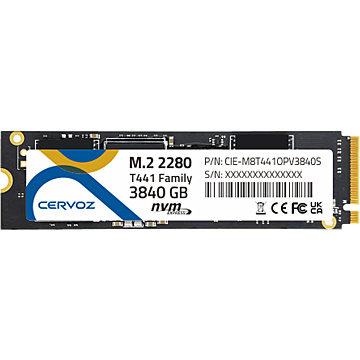

3840GB M.2 2280 SSD, NVME, Industrial, T441 Cervoz
SKU
CIE-M8T441OPV3840S
Lead time 14-22 days
Industrial M.2 2280 Embedded Module
- Compliant with PCIe Gen 4x4 interface
- Compliance: NVMe 1.4/ PCI Express Base 4.0
- TLC NAND flash memory
- Capacity: 480GB ~ 3840GB
- With DRAM Buffer
- End-to-End data protection
- SLC write cache technology
- Dynamic Thermal throttling
- Operating as boot disk
- Static and dynamic wear leveling
| Form Factor | |
| Form Factor | M.2 PCIe 2280 |
| Product grouping | Industrial M.2 2280 Embedded Module |
| System | |
| Interface | PCIe Gen4x4 |
| Connector & Form factor | M.2 2280 (M-key) |
| NAND Flash type | 3D TLC |
| Capacity | 480GB – 3840GB |
| Sequential Read | up to 7100MB/s |
| Sequential Write | up to 6190 MB/s |
| DRAM buffer | yes |
| ECC Scheme | LDPC |
| MTBF | >3 000 000 h |
| Supply Voltage | 3.3V DC |
| Dimensions | 80mm x 22mm x3.5mm |
| Specialty Technology | End-to-End data protection SLC write cache technology Dynamic Thermal throttling Anti-Vibration Fill (Optional) Conformal Coating (Optional) |
| Environmental | |
| Operating Temp | Standard : 0°C ~ 70°C Wide : TBC |
| Manufacturer / Brand | Cervoz |
|---|---|
| Capacity | 3840GB |
| Interface (Connector) | M.2 M-key |
| Data Interface | NVMe /PCIe Gen4x4 |
| Operating Temp | Normal Temp 0..70C |
