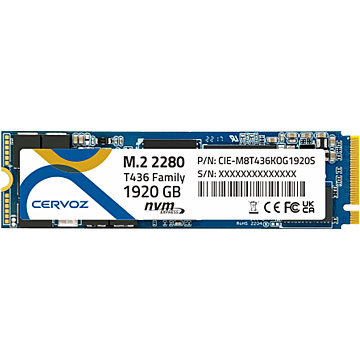

1920GB M.2 2280 SSD, NVME, Industrial, T436 Cervoz
SKU
CIE-M8T436KOG1920S
Lead time 14-22 days
Industrial M.2 2280 Embedded Module
- Compliant with PCIe Gen3x4 interface
- Compliance: NVMe 1.3/ PCI Express Base 3.1
- TLC NAND flash memory
- Capacity: 240GB ~ 1920GB
- With DRAM Buffer
- Powerguard Function (Power Loss Protection)
- Support AES 256-bit Encryption
- End-to-End data protection
- Dynamic Thermal throttling
| Form Factor | |
| Form Factor | M.2 PCIe 2280 |
| Product grouping | Industrial M.2 2280 Embedded Module |
| System | |
| Interface | PCIe Gen3x4 |
| Connector & Form factor | M.2 2280 (M-key) |
| NAND Flash type | 3D TLC |
| Capacity | 240GB – 1920GB |
| Sequential Read | up to 3445MB/s |
| Sequential Write | up to 1000 MB/s |
| DRAM buffer | yes |
| ECC Scheme | LDPC |
| MTBF | >3 000 000 h |
| Supply Voltage | 3.3V DC |
| Dimensions | 80mm x 22mm x3.5mm |
| Specialty Technology | Support AES 256bit Encryption End-to-End data protection Dynamic Thermal throttling Anti-Vibration Fill (Optional) Conformal Coating (Optional) |
| Environmental | |
| Operating Temp | Standard : 0°C ~ 70°C Wide : -40°C ~ 80°C |
| Manufacturer / Brand | Cervoz |
|---|---|
| Capacity | 1920GB |
| Interface (Connector) | M.2 M-key |
| Data Interface | NVMe /PCIe Gen3x4 |
| Operating Temp | Normal Temp 0..70C |
