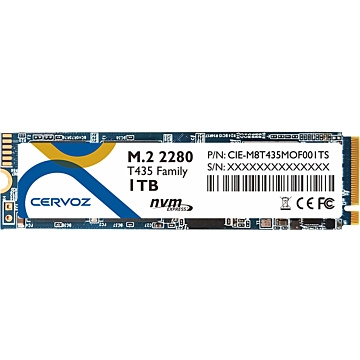

1TB M.2 2280 SSD, Industrial, NVME, Wide-temp
SKU
CIE-M8T435MOF001TW
Lead time 21-30 days
- Compliant with PCIe Gen3x4 interface (backward compatible to PCIe Gen 2 and Gen 1)
- Compliance: NVMe 1.3 / PCI Express Base 3.1
- 3D TLC flash memory
- Capacity: 128GB ~ 1TB
- With DDR3 DRAM Buffer
- End-to-End data protection
- SLC write cache technology
- Thermal throttling
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
- Power Saving Modes: Support APST / Support ASPM / Support L1.2
- Fully compatible with Windows 8.1, Windows 10, Mac OS, and Linux*
| Form Factor | |
| Form Factor | M.2 PCIe 2280 |
| Product grouping | T435 Family (NVMe with DRAM buffer) |
| System | |
| Interface | PCIe Gen3x4 (backward compatible to PCIe Gen 2 and Gen 1) |
| Connector | M.2 2280 (M) |
| NAND Flash type | 3D TLC |
| Capacity | 128GB256GB/512GB/1TB |
| Sequential Read | up to 2085MB/s |
| Sequential Write | up to 1840MB/s |
| DRAM buffer | Included |
| ECC Scheme | Applies the LDPC (Low Density Parity Check) of ECC algorithm |
| MTBF | 2,000,000 hours |
| Low Power Management | DIPM / HIPM mode |
| Supply Voltage | +3.3V DC ± 5% |
| Dimensions | 80.00*22.00*3.50mm |
| Manufacturer / Brand | Cervoz |
|---|---|
| Capacity | 1TB |
| Interface (Connector) | M.2 M-key |
| Data Interface | NVMe /PCIe Gen3x4 |
| Operating Temp | Extreme Wide Temp -40..85C |
