CAPA520PHGG-H310
SKU
CAPA520PHGG-H310-ZIO
Lead time 21-30 days

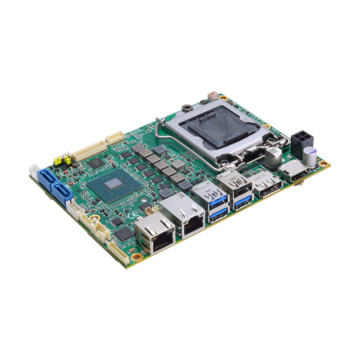

3.5” Embedded SBC with LGA1151Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, DisplayPort, HDMI, LVDS and 3 GbE LAN
- LGA1151 socket 9th/8th gen Intel® CoreTM i7/i5/i3 processor
- Intel® H310 chipset (Q370 optional)
- 1 DDR4 SO-DIMM for up to 16GB of memory
- 3 GbE LAN
- 1 PCI Express Mini Card slot
Form Factor | |
Form Factor | 3.5” Embedded SBC |
System | |
Processor | LGA1151 socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (TDP 35W) |
Integrated Graphics | Intel integrated Gfx graphic engine |
Security Hardware | |
Chipset | Intel® H310 |
Storage | 2 x SATA-600 |
Storage Support | |
Memory | 1 x 260-pin SO-DIMM DDR4 max 16GB |
Graphics | |
I/O Ports | |
USB 2.0 | 3 x USB 2.0 |
USB 3.0 | 3x USB3.0 |
USB 3.1 | |
Serial | 1 x RS-232/422/485 |
Video | 1 x HDMI 1 x LVDS; 18/24-bit single/dual channel 1 x DisplayPort |
Ethernet | 3 x 10/100/1000 Mbps (Intel ) |
Other Ports | DIO 8-channel programmable HD Audio |
Expansion | |
Expansion Interface | 1 x PCI Express Mini Card slot with mSATA supported ZIO connector: 1 x USB, 1x PCIe x1, 1 x LPC, 1 x SMBus |
Operating System | |
Operating System | Windows 10 |
Power | |
DC Input / Source Voltage | 2 x 2-pin connector +12V DC-in only AT Auto Power On function supported |
Operating Temperature | |
Operating Temperature | Operating Temperature -20°C to 60°C |
Humidity Range | 10% ~ 95%, non-condensing |
Dimensions / Weight | |
Weight (kg) | 0.5kg |
Dimensions | 146 x 104 mm |
Certification | |
Certification | CE |
Manufacturer / Brand | Axiomtek |
---|---|
Socket | LGA 1151 |
Form Factor | 3.5" Embedded |
