CAPA322-J6412-HP
SKU
CAPA322-J6412-HP
Lead time 21-30 days

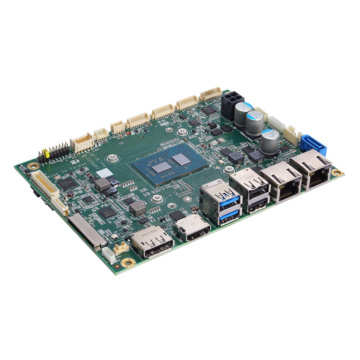

3.5" Embedded SBC with Intel® Celeron® Processor N6210/J6412 or Intel Atom® x6413E Processor, HDMI, LVDS, DisplayPort, Optional eDP, 2.5GbE LAN, and GbE LAN
- Intel® Celeron® processor N6210/J6412 or Intel Atom® x6413E processor
- 1 DDR4 SO-DIMM for up to 32GB
- 4 USB 2.0 and 2 USB 3.2 Gen2
- 1 PCI Express Mini Card slot with mSATA supported
- 1 M.2 Key E and 1 M.2 Key B
| Form Factor | |
| Form Factor | 3.5” Embedded SBC |
| System | |
| Processor | Intel® Celeron® processor N6210/J6412 or Intel Atom® x6413E processor onboard |
| Security Hardware | Onboard TPM2.0 (optional) |
| Chipset | SoC |
| Storage | 1 x SATA-600 |
| Memory | 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB |
| Graphics | Intel® integrated Gfx graphic engine |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 2x USB3.2 Gen2 |
| Serial | 2 x RS-232/422/485 2 x RS-232 |
| Video | 1 x HDMI 1 x DisplayPort 1 x LVDS 1 x eDP (optional) |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet with Intel® I211-AT; supports Wake-on LAN, PXE Boot ROM 1 x 10/100/1000/2500 Mbps Ethernet With Intel® I225-LM; supports Wake-on LAN, PXE Boot ROM |
| Other Ports | DIO HD Audio link via pin header |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (optional) 1 x M.2 Key E (PCIe x1, USB 2.0 in 22 x 30) 1 x M.2 Key B (PCIe x1, USB 3.2 Gen1, USB 2.0 in 30 x 42 or 30 x 50) |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | 2 x 2-pin connector +12V to 24V DC-in AT Auto Power On function supported |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -20°C to 70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 146 x 104 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | SoC |
| Form Factor | 3.5" Embedded |
