CAPA311
SKU
CAPA311HGGA-E3940
Lead time 14-22 days

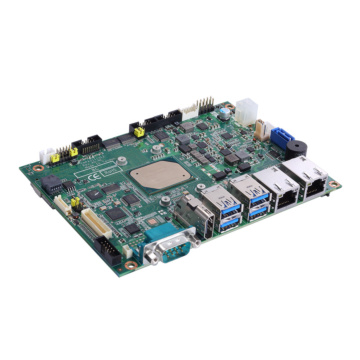

3.5" Embedded SBC with Intel® Atom® x5-E3940 Processor, HDMI, LVDS, 2 GbE LAN and Audio
- Intel® Atom® x5-E3940 processor
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 USB 2.0 and 4 USB 3.0
- 2 full-size PCI Express Mini Card slots
| Form Factor | |
| Form Factor | 3.5” Embedded SBC |
| System | |
| Processor | Intel® Atom® x5-E3940 Processor onboard |
| Integrated Graphics | Yes |
| Security Hardware | |
| Chipset | SoC integrated |
| Storage | 1 x SATA-600 |
| Storage Support | |
| Memory | 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 4 x USB 3.0 |
| USB 3.1 | |
| Serial | 2 x RS-232/422/485 2 x RS-232 |
| Video | 1 x LVDS 1 x HDMI |
| Ethernet | 1 x 10/100/1000 Mbps (Intel® i211-AT ) |
| Other Ports | DIO Mic-in/Line-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot with mSATA supported 1 x Full-size PCI Express Mini Card slot 1 x SIM slot |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 2 x 2-pin connector +12V DC-in only AT Auto Power On function supported |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -40°C to 80°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 146 x 104 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | SoC |
| Form Factor | 3.5" Embedded |
