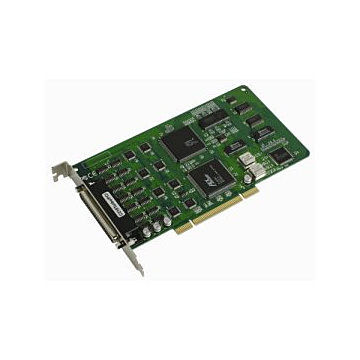

Moxa C218Turbo/PCI RS-232 Universal PCI Board

The MOXA C218Turbo/PCI is a multiport serial board that is specifically designed for small
but performance demanding applications.

With its state-of-the-art ASIC (Application Specific Integrated Circuit), on-board RISC processor
(TI TMS320), and large I/O buffer (512 KB), the C218Turbo is a world class I/O serial board.

It can maintain a sustained 230.4 Kbps throughput on all eight ports simultaneously while only
occupying 5% of the host´s processor time, freeing up more host resources for other tasks.
This feature is particularly applicable to fast response demanding industrial control
applications, and high speed telecommunication applications.

Features

* 8-port RS-232 intelligent communication board
* Effectively reduces CPU loading
* Versatile OS driver support
* Various connection options
* Data transmission speed up to 921.6 Kbps
* Embedded memory up to 512 KB
* High throughput for great performance
* Compact ISA board size

Benefits

* Highest performance to meet all speed-demanding and data intensive applications
* Intelligent on-board processor takes a significant load off the host CPU
* Large on-board buffer for high-performance communication
* Compact design size-ideal for high performance, server-based systems

Applications

* Critical industrial control
* Response demanding monitoring systems
* Embedded industrial machines
* Small Internet/Intranet communication server
* High speed modem/ISDN connectivity
* PC-based routers

Please do not hesitate to contact us with any question or concern you may have and we
would be happy to assist you.

1 x Moxa C218Turbo/PCI RS-232 Universal PCI Board
1 x Moxa Software CD-ROM: contains drivers and Moxa PComm Lite serial comm developing tool
1 x User´s Manual

Hardware

* Processor: TMS320BC203-57 RISC CPU
* I/O Controller: 16C550C or compatible x 8
* Memory: 512 KB

Interface

* Bus: 32-bit, Universal PCI
* Serial: RS-232. (Optional accessories required with RS-422/485)
* No. of Ports: 8

Performance

* Baudrate: 50 bps to 921.6 Kbps
* Max. No. of Ports: 32 (with 4 boards in the same system)
* Stop Bits: 1, 1.5, 2

Configuration

* IRQ: Assigned by BIOS
* Parity: None, even, odd, space, mark
* Data Bits: 5, 6, 7, 8

Operating Systems

* C218Turbo/PCI:
- Windows Vista (X86 & X64)
- Windows 2000/XP/2003
- indows NT/Windows NT Alpha
- Windows 95/98/ME
- DOS
- Linux 2.2.x (Alpha)/Linux 2.4.x (x86)
- SCO Open Server 5
- QNX

Power and Environment

* Power Requirements: 530 mA max.(+5V), 110 mA max.(+12V), 35 mA max.(-12V)
* Operating Temperature: 0 to 55°C
* Operating Humidity: 5 to 95% RH
* Storage Temperature: -20 to 85°C
* Dimensions: 180 x 105 mm (W x D)
* Surge Protection: 25 KV ESD per serial port (when using Optional Connector Opt8S)
* Optical Isolation: 500V (when using Optional Connector Opt8F)
* Regulatory Approvals: FCC, CE
