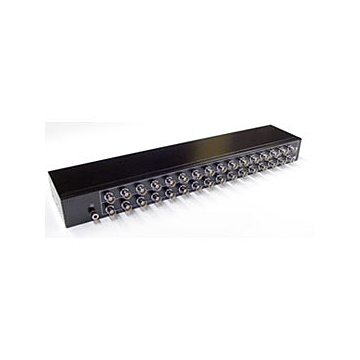

16-ch BNC-Video surge protector
SKU
bncsurge16
In Stock
272.26EUR 216.94EUR
16-channel video surge protector for BNC video. Protects your equipment against power surges such as lightning.
Package includes
1x 16-ch BNC-Video surge protector
Specifications
| Product Name | Video Surge Protector BNC connector |
| Function | Video Signal Surge Protection |
| Applied devices | CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR. VOD. |
| Connector | Female BNC connector |
| Nominal Operating Voltage (Un) | 6V |
| Max Continuous Running Voltage (Uc) | 8V |
| Nominal Discharge Current In (8/20us)} | 10KA |
| Max Discharge Current Imax (8/20us) | 20KA |
| Rated Load Current ( IL) | 500mA |
| Limited Voltage | 15V |
| Response Time | ≤1ns |
| Max Transmission Rate | 10Mbps |
| Matched Impedance | 75Ω |
| Insertion Loss | |
| Housing | Galvanized |
| Net weight | 1.26kg |
| Dimension | 435*90*44.5mm |
