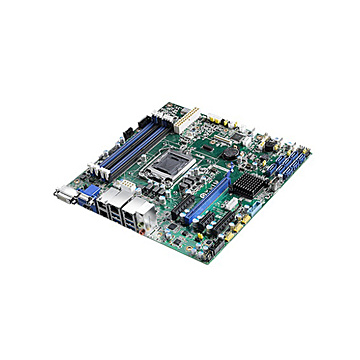

ASMB-586G2-00A1
SKU
ASMB-586G2-00A1
Lead time 21-30 days
LGA 1151 Intel® 8th Generation Core & Xeon® MicroATX Server Board with 4 DDR4, 4 PCIe, 6 USB 3.1, 8 SATA3, Quad/Dual LANs, IPMI
Details
* Supports LGA 1151 Intel® Xeon® E and 8th Generation Core™ i7/i5/i3 processors
* DDR4 ECC/Non-ECC 2666/2400/2133 MHz UDIMM up to 64GB
* 1 PCIe x16,three PCIe x4 and one PCIe x1 slots
* Triple displays - DVI-D, VGA and HDMI 2.0 ports
* 8 SATA3 ports and 6 USB 3.1 ports
* 0 ~ 60° C ambient operation temperature range
* DDR4 ECC/Non-ECC 2666/2400/2133 MHz UDIMM up to 64GB
* 1 PCIe x16,three PCIe x4 and one PCIe x1 slots
* Triple displays - DVI-D, VGA and HDMI 2.0 ports
* 8 SATA3 ports and 6 USB 3.1 ports
* 0 ~ 60° C ambient operation temperature range
Specifications
| Form Factor | |
| Form Factor | Micro ATX |
| System | |
| Processor | Intel LGA1151 Xeon E and 8th Gen Core i3/i5/i7 series |
| Integrated Graphics | Yes |
| Security Hardware | |
| Chipset | Intel C246 |
| Storage | 8 x SATAIII (RAID 0,1,5,10) |
| Storage Support | |
| Memory | 4 x 288-pin UDIMM, max 64GB Dual Channel DDR4 ECC/Non-ECC 2133/2400/2666 MHz |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 7 x USB 2.0 |
| USB 3.0 | 6 x USB 3.0 |
| Serial | 2 x RS-232 |
| Video | 1 x DVI-D 1 x VGA 1 x HDMI |
| Ethernet | 2x RJ-45 Gbe, 1 x Intel I219-LM + 1 x Intel I210-AT |
| Other Ports | PS/2 Keyboard/Mouse |
| Expansion | |
| Expansion Interface | 1 x PCIex16 2 x PCIex4 1 x PCIex1 |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 24-pin SSI power connector + 8-pin SSI 12 V power connector |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 90%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 244 x 244 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Advantech |
|---|---|
| Socket | LGA 1151 |
| Form Factor | ATX |
