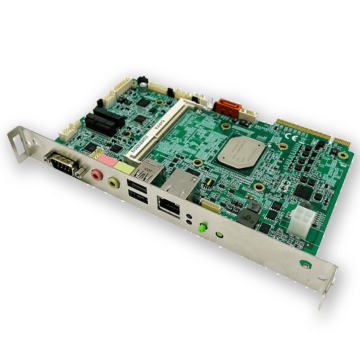

ASDM-APL5
SKU
ASDM-APL5
Lead time 21-30 days
Intel® Smart Display Module(Intel® SDM) with Intel® Atom® E3900 processor, COM, 2 USB, One GbE LAN.
- Intel® Smart Display Module (Intel® SDM) specification
- Intel® Apollo Lake SoC on board
- One 204-pin SO-DIMM DDR3L up to 1866MT/s 8GB SDRAM
- One Intel® Gigabit Ethernet ports
- M.2 Key M slot
- M.2 (M-Key 2242), M.2 (E-Key 2230) expansion slots
- COM, 2 USB 3.0
- Supports Intel® AMT 12
| System | |
| Processor | Intel® Atom™ x5-E3940 1.60GHz / 1.80GHz (Base/Burst) Quad-Core SoC (9.5W) |
| Chipset | SoC |
| Storage | 1 x M.2 Key B 2242 slot |
| Memory | DDR3L up to 1866MHz SDRAM |
| Audio | Realtek ALC662 HD |
| Graphics | Intel® HD Gen. 9-LP Graphics |
| I/O Ports | |
| SDM Edge connector | 1x USB3.0 |
| 1x HDMI 2.0 | |
| 1x DisplayPort 1.2 1x Serial TX/RX |
|
| 1x I2C | |
| Ethernet | 1x GbE LAN , RJ-45 |
| Other Ports | 2x USB 3.0 (Rear I/O) 1x RS-232/422/485 (Rear I/O) |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 slot for Wi-Fi/BT |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | Through SDM golden finger +12V & +3.3VBS |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 175 x 100 mm |
| Enclosure | |
| Bezel | |
| Material | |
| Mounting | Smart Display Module |
| Certification | |
| Certification | CE, FCC Class A |
