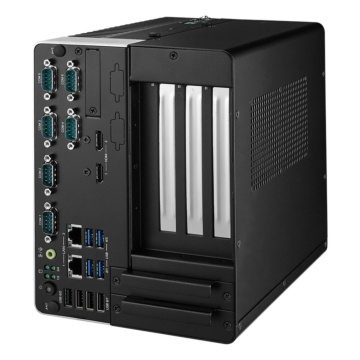

ARK-3534C
SKU
ARK-3534C-00A1
Lead time 21-30 days
0.00EUR
12th &13th Gen Intel® Core™ i3/i5/i7/i9 LGA1700 Expansion Fanless Box PC, PCIEx16 & 2x PCI
- Support Intel® 12th & 13th Gen. Core™ i3/i5/i7/i9 processor
- Triple independent display: HDMI + HDMI + Optional Display
- DDR5 SO-DIMM memory support up to 64 GB
- 9-36VDC wide range power input
- Up to 3sets 2.5" hard drive bays
- Support up to 4GbE, 8USB, 8COM, 16bit DIO, 2CANBus, TPM2.0
- SUSI API, WISE-DeviceOn, McAfee and Acronis bundled
| System | |
| Processor | Intel® 12th generation Core™ I processor/ Pentium®/Celeron® |
| Security Hardware | TPM2.0 (by optional module) |
| Chipset | Intel® H610E |
| Storage | 2 x 2.5” SATA HDD/SSD (up to 15 mm height) |
| Storage Support | |
| Memory | 2 x 262 pin DDR5-4800 non-ECC SO-DIMM, up to 64GB |
| Audio | |
| Graphics | Intel UHD Graphics 770 |
| I/O Ports | |
| USB 2.0 | 4x USB2.0 |
| USB 3.0 | 4x USB 3.2 |
| Serial | 4x RS-232/422/485 |
| Video | 1 x HDMI 1.4 1 x VGA |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet |
| Other Ports | 16bit GPIO(by optional cable) Audio CAN-port (by optional cable) |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 slot 2 x PCI-slot 1x M2. 2230 E key 1 x M.2 2280 B key with SIM holder |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 9-36VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 6.0 kg |
| Dimensions | 156 x 204 x 230 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -20..70C |
