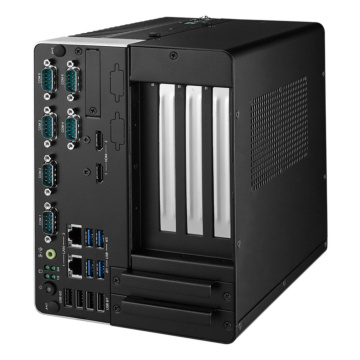

ARK-3534B

Customize ARK-3534B
ARK-3534B

* Required Fields

Your Customization
ARK-3534B
ARK-3534B

0.00EUR

Summary
    SKU
    ARK-3534B-00A1
    Lead time 21-30 days

    0.00EUR

    12th &13th Gen Intel® Core™ i3/i5/i7/i9 LGA1700 Expansion Fanless Box PC, PCIEx16, PCIEx4

    • Support Intel® 12th & 13th Gen. Core™ i3/i5/i7/i9 processor
    • Triple independent display: HDMI + HDMI + Optional Display
    • DDR5 SO-DIMM memory support up to 64 GB
    • 9-36VDC wide range power input
    • Up to 3sets 2.5" hard drive bays
    • Support up to 4GbE, 8USB, 8COM, 16bit DIO, 2CANBus, TPM2.0
    • SUSI API, WISE-DeviceOn, McAfee and Acronis bundled
    System
    Processor Intel® 12th generation Core™ I processor/ Pentium®/Celeron®
    Security Hardware TPM2.0 (by optional module)
    Chipset Intel® H610E
    Storage 2 x 2.5” SATA HDD/SSD (up to 15 mm height)
    Storage Support
    Memory 2 x 262 pin DDR5-4800 non-ECC SO-DIMM, up to 64GB
    Audio
    Graphics
    Intel UHD Graphics 770
    I/O Ports
    USB 2.0 4x USB2.0
    USB 3.0 4x USB 3.2
    Serial 4x RS-232/422/485
    Video 1 x HDMI 1.4
    1 x VGA
    Ethernet 2 x 10/100/1000 Mbps Ethernet
    Other Ports 16bit GPIO(by optional cable)
    Audio
    CAN-port (by optional cable)
    Expansion
    Expansion Interface 1 x PCIe x16 slot
    1 x PCIe x4 slot
    1x M2. 2230 E key
    1 x M.2 2280 B key with SIM holder
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 9-36VDC
    Operating Temperature
    Operating Temperature -20°C ~ +60°C (with Wide-Temp SSD, Memory)
    Humidity Range 10% ~ 90%, non-condensing
    Vibration 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
    Shock 30 G, IEC 60068-2-27, half sine, 11 ms duration
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 6.0 kg
    Dimensions 156 x 204 x 230 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk
    Certification
    Certification CE
    More Information
    CoolingFanless
    CPU FamilyAlder Lake (12th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -20..70C
