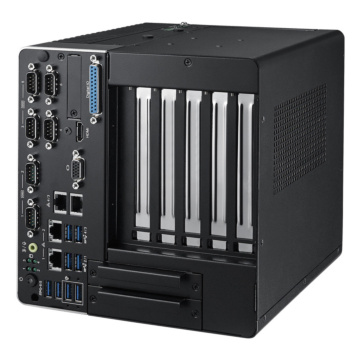

    Intel® 10th Gen Xeon® W / Core™ i LGA1200 Expansion Fanless Box PC

    • Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
    • Triple independent display: VGA + HDMI + Optional Display
    • DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
    • 12-36VDC wide range power input
    • Up to 4sets 2.5" hard drive bays, support Intel® SW RAID
    • Support 4GbE, 8USB, 6COM, 16bit DIO
    • 1x PCIEx16, 1x PCIEx4, 2xPCI
    System
    Processor Intel Xeon W-1290TE
    Intel Core i9 10900E
    Intel Core i7 10700E
    Intel Core i5 10500E
    Intel Core i3 10100E
    Security Hardware TPM2.0 (by optional module)
    Chipset Intel® W480E
    Storage 2 x 2.5” SATA HDD/SSD (up to 15 mm height)
    2 x mSATA (enabled in BIOS setting)
    Storage Support
    Memory 2 x 260 pin DDR4-2933 non-ECC SO-DIMM, up to 64GB
    Audio
    Graphics
    Intel UHD Graphics 630
    Direct x 12, OpenGL 4.4,
    HW Encode: H.265/HEVC,H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8,
    HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.2
    2x USB 3.0
    Serial 4x RS-232/422/485
    Video 1 x HDMI 1.4
    1 x VGA
    Ethernet 4 x 10/100/1000 Mbps Ethernet (3 x Intel® I210-IT, 1 x Intel® I219-LM)
    Other Ports 16bit GPIO
    1 x AT/ATX quick switch
    1 x Remote switch
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card slot (mSata, Support SIM socket)
    1 x M.2 E-key for WIFI
    1 x PCIe x16 slot
    1 x PCIe x4 slot
    2 x PCI
    1 x SIM slot
    Operating System
    Operating System Windows® 10, LINUX
    Win 11 IoT
    Power
    DC Input / Source Voltage 12-36VDC
    Operating Temperature
    Operating Temperature -20°C ~ +60°C (with Wide-Temp SSD, Memory)
    Humidity Range 10% ~ 90%, non-condensing
    Vibration 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
    Shock 30 G, IEC 60068-2-27, half sine, 11 ms duration
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 6.5 kg
    Dimensions 198 x 204 x 230 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting /DIN-rail
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    More Information
    CoolingFanless
    CPU FamilyComet Lake (10th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -20..70C
