ARK-3532B-00A1
SKU
ARK-3532B-00A1
Lead time 21-30 days
0.00EUR

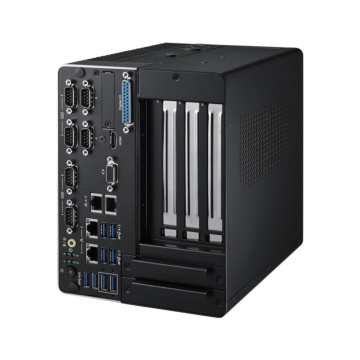

Intel® 10th Gen Xeon® W / Core™ i LGA1200 Expansion Fanless Box PC
- Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
- Triple independent display: VGA + HDMI + Optional Display
- DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
- 12-36VDC wide range power input
- Up to 4sets 2.5" hard drive bays, support Intel® SW RAID
- Support 4GbE, 8USB, 6COM, 16bit DIO
- 1x PCIEx16, 1x PCIEx4
| System | |
| Processor | Intel Xeon W-1290TE Intel Core i9 10900E Intel Core i7 10700E Intel Core i5 10500E Intel Core i3 10100E |
| Security Hardware | TPM2.0 (by optional module) |
| Chipset | Intel® W480E |
| Storage | 2 x 2.5” SATA HDD/SSD (up to 15 mm height) 2 x mSATA (enabled in BIOS setting) |
| Storage Support | |
| Memory | 2 x 260 pin DDR4-2933 non-ECC SO-DIMM, up to 64GB |
| Audio | |
| Graphics | Intel UHD Graphics 630 Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC,H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.2 2x USB 3.0 |
| Serial | 4x RS-232/422/485 |
| Video | 1 x HDMI 1.4 1 x VGA |
| Ethernet | 4 x 10/100/1000 Mbps Ethernet (3 x Intel® I210-IT, 1 x Intel® I219-LM) |
| Other Ports | 16bit GPIO 1 x AT/ATX quick switch 1 x Remote switch |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (mSata, Support SIM socket) 1 x M.2 E-key for WIFI 1 x PCIe x4 slot 1 x PCIe x16 slot 1 x SIM slot |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 12-36VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 5.7 kg |
| Dimensions | 156 x 204 x 230 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting /DIN-rail |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|---|
| CPU Family | Comet Lake (10th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -20..70C |
