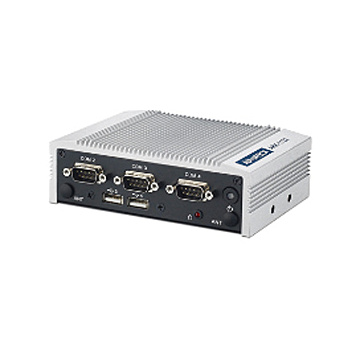

ARK-1122C-S6A1E

* Sealed construction with fanless design with Intel Atom N2600, 1.6 GHz
* Palm-size form factor : 134 x 94 x 43 mm
* Supports 4 x COM ports (2 x RS-232 & 2 x RS-232/422/485, select by BIOS)
* Supports 1 x VGA and 4 x USB 2.0 ports
* Built-in 1 x half size Mini PCIe expansion slot (i.e.: WiFi module)
* Supports mSATA storage
* Wide operating temperature -20 ~ 60° C support
* Optional VESA / DIN-Rail / Wall mounts
* Optional SUSIAccess and embedded software APIs

Processor Core Logic System

CPU:
Intel Atom N2600

System Memory:
1 x 204-pin SODIMM

I/O Interface
1x VGA (Up to 1920 x 1200)
2x RS-232,
2x RS-232/422/485 (selected by BIOS)
1x RJ45 10/100/1000mbs LAN
4x USB2.0


Storage
1 x Full Size mSATA

Expansion
mini PCIe card -slot

Power Supply
12V DC input
240V AC adapter

Software Support
Win7, WES7

Environment Specifications
Operating Temperature -20°C to 60°C (with wide-temp industrial ssd)
Storage temperature: -20°C ~ 80°C
Humidity: 10% ~ 90% (non-condensing)

Safety: CE

Mechanical
Construction: aluminium housing

Mounting:
Wall/DIN/VESA

Dimension: 133.8 x 43.1 x 94.2 mm

Weight: 1.2 kg
