ARCHMI-921P
SKU
archmi-921p
Lead time 21-30 days

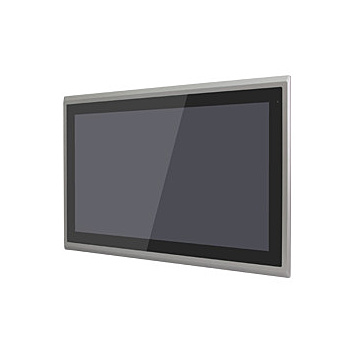

21.5" Fanless Panel PC with Intel Core i3 CPU, 4GB DDR3 RAM, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis
Details
21.5" Industrial Compact Size Panel PC
Flat Front Panel Touch Screen
Fanless Design
Intel 4th Gen. Core i3 CPU built-in
Onboard 4GB DDR3L 1600 MHz
9~36V DC wide-ranging power input
Flat Front Panel Touch Screen
Fanless Design
Intel 4th Gen. Core i3 CPU built-in
Onboard 4GB DDR3L 1600 MHz
9~36V DC wide-ranging power input
Specifications
LCD Specifications
21.5" TFT LCD Panel
Resolution : 1920 x 1080, FHD
Brightness : 250 cd/m²
Viewing Angle (H-V): 178/178
Touchscreen
Projected capacitive touch panel
Processor Core Logic System
CPU:
Intel 4th Gen. Core i3-4010U
System Chipset:
SoC
System Memory:
4GB DDR3L SO-DIMM RAM module installed
Ethernet
2 x RJ-45 GbE LAN
I/O Interface
1 x RS232/422/485
1 x RS232
2 x USB 2.0
2 x RJ-45 GbE ports
1 x Audio, Line-out
Storage
1 x 2.5” SATA bay
Expansion
1 x Mini-pcie socket (Full Size)
Power Supply
9-36V DC input
Software Support
Windows 7, Windows 8, Linux
Environment Specifications
Operating Temperature 0°C to 50°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)
Mechanical
Construction: Aluminium housing
Mounting: Panel Mounting , VESA-100
Weight: 7.8kg
Dimension: 557 x 362 x 64.8 mm
Safety: CE
